android高效简洁的代码实现直播礼物效果

     入职新公司，发现这边老项目里边有个礼物的特效，我就想着何种效果应该是比较常见的，并且最近又看了一些贝塞尔曲线的内容，闲着无事，索性就自己写写代码，尝试下自己能不能自己去实现这种效果。

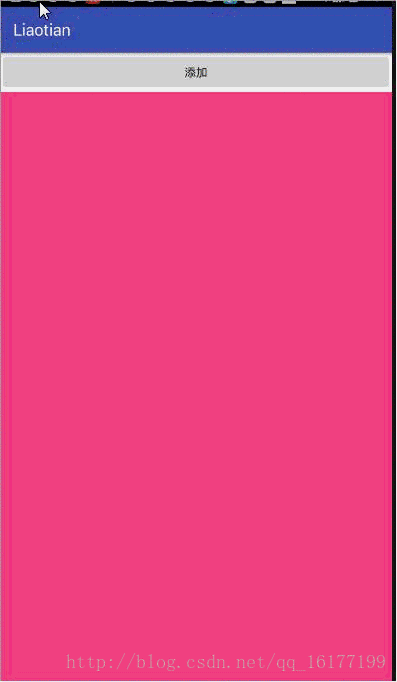

       实现的过程真的非常简单，无非是如何在自定义view中使用贝塞尔曲线，贝塞尔曲线这里就不介绍了，网上资源太多了，首先看下效果。



实现的动画必须有几个特点，

1.弹出的图片必须自由定义。

2.弹出的位置固定，消失位置不固定。

3.弹出的路径必须是按照贝塞尔曲线去进行。

4.弹出的速度必须不一样。

5.弹出的个数必须随意。

过程就不多说了，主要看代码：



import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;

/*
*
* 贝塞尔曲线的理解
* */

public class MainActivity
extends AppCompatActivity
{
private Bezi
4000
erView mBezierView;

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

mBezierView = findViewById(R.id.bezierView);
findViewById(R.id.addImage).setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
mBezierView.addimage();
}
});
}

}

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
tools:context="com.livestar.liaotian.MainActivity">

<Button
android:text="添加"
android:id="@+id/addImage"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
<com.livestar.liaotian.BezierView
android:id="@+id/bezierView"
android:background="@color/colorAccent"
android:layout_width="match_parent"
android:layout_height="match_parent"/>

</LinearLayout>

核心代码：

public class BezierView extends View {

private static final String TAG = "BezierView";
private  Context context;
private Paint mPaint;
private float detlaX=0;
private float detlaY=500;

private int mWidth;

private PointF point1;

private PointF mPoint;
private Bitmap mBitmap;

private Bitmap mBitmap2;
private Bitmap mBitmap3;

private Random mRandom;
private int select;
private List<Bitmap> mBitmaps=new ArrayList<>();
private int select2=1;

private List<PointImage> listpointImage=new ArrayList<>();
private Bitmap mBitmap4;
private Bitmap mBitmap5;
private Bitmap mBitmap6;
private Bitmap mBitmap7;
private Bitmap mBitmap8;
private Bitmap mBitmap9;
private Bitmap mBitmap10;
private Bitmap mBitmap11;

public BezierView(Context context) {
super(context);
this.context=context;
}

public BezierView(Context context, @Nullable AttributeSet attrs)
{
super(context, attrs);
this.context=context;
init();
initBitmap();
initrandom();
}

private void initrandom() {
mRandom = new Random();
}

private void initBitmap() {
mBitmap = BitmapFactory.decodeResource(getResources(), R.drawable.ic_heart_yellow);
mBitmap2 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_heart_red);
mBitmap3 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_heart_blue);
mBitmap4 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_heart_blue);
mBitmap5 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_moon_blue);
mBitmap6 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_moon_yellow);
mBitmap7 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_qiqiu_blue);
mBitmap8 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_qiqiu_red);
mBitmap9 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_qiqiu_yellow);
mBitmap10 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_star_gray);
mBitmap11 = BitmapFactory.decodeResource(getResources(), R.drawable.ic_start_yellow);
mBitmaps.add(mBitmap);
mBitmaps.add(mBitmap2);
mBitmaps.add(mBitmap3);
mBitmaps.add(mBitmap4);
mBitmaps.add(mBitmap5);
mBitmaps.add(mBitmap6);
mBitmaps.add(mBitmap7);
mBitmaps.add(mBitmap8);
mBitmaps.add(mBitmap9);
mBitmaps.add(mBitmap10);
mBitmaps.add(mBitmap11);

}

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
super.onMeasure(widthMeasureSpec, heightMeasureSpec);
mWidth=this.getMeasuredWidth();
}

/**
* 初始化画笔 路径
*/
private void init() {
//画笔
mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mPaint.setColor(Color.WHITE);
mPaint.setStrokeWidth(10f);
mPaint.setTextSize(20f);
mPaint.setStyle(Paint.Style.STROKE);
}

@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
for (int i=0;i<listpointImage.size();i++){
PointImage pointImage=    listpointImage.get(i);
Log.d(TAG, pointImage.getAnimation().progress+"---"+i);
float    xAix=getYvalue(pointImage.getAnimation().progress,pointImage.getPointF().point1,pointImage.getPointF().pointC,pointImage.getPointF().point2).x;
float   yAix=getYvalue(pointImage.getAnimation().progress,pointImage.getPointF().point1,pointImage.getPointF().pointC,pointImage.getPointF().point2).y;
canvas.drawBitmap(mBitmaps.get(pointImage.getSelctimage()),xAix,yAix,mPaint);
if (pointImage.getAnimation().progress>=1){
listpointImage.remove(pointImage);
pointImage=null;
continue;
}else {
invalidate();
}
}

}

public PointF  getYvalue(float t, PointF point1,PointF point2, PointF point3){

mPoint.x =(1-t)*(1-t)*point1.x+2*t*(1-t)*point2.x+t*t*point3.x;

mPoint.y = (1-t)*(1-t)*point1.y+2*t*(1-t)*point2.y+t*t*point3.y;
// 套用上面的公式把点返回
return mPoint;

}

public void addimage() {

PointImage pointImage=new PointImage();
AnimationBean animation=AnimationFactor.getAnimation(context);
//必须要随机的一个动画
pointImage.setAnimation(animation);

//随机的一个路径
PointPath pointPath =new PointPath();
pointPath.creatPointPath(this.getMeasuredWidth(),this.getMeasuredHeight(),mBitmap.getHeight());
pointImage.setPointF(pointPath);

//随机的图片
pointImage.setSelctimage(mRandom.nextInt(3));
listpointImage.add(pointImage);

pointImage.getAnimation().mObjectAnimator.start();
invalidate();

}
}

代码很简单的，大家拿去改吧改吧就能直接用了。

import android.animation.ObjectAnimator;

public class AnimationBean {

public ObjectAnimator mObjectAnimator;
public  float progress;
}

importandroid.animation.ObjectAnimator;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.PointF;
import android.util.Log;
import android.view.animation.Animation;

import java.security.PublicKey;
import java.util.Random;

public class AnimationFactor {

private static String TAG="AnimationFactor";
public  static    Random mRandom=new Random();
private  float progresscount3;

public  static AnimationBean  getAnimation(Context context){
final   AnimationBean  animationBean=new AnimationBean();

ObjectAnimator animator = ObjectAnimator.ofFloat(context, "z", 0, 1 );
animator.setDuration(mRandom.nextInt(6000)+1000);
animator.setRepeatCount(0);

animator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {

animationBean.progress=(float)animation.getAnimatedValue();
Log.d(TAG,animationBean.progress+"");
}
});
animationBean.mObjectAnimator=animator;

return  animationBean;
}

}

public class PointImage {

public AnimationBean mAnimation;
public PointPath mPointF;
public  int selctimage;

public int getSelctimage() {
return selctimage;
}

public void setSelctimage(int selctimage) {
this.selctimage = selctimage;
}

public AnimationBean getAnimation() {
return mAnimation;
}

public void setAnimation(AnimationBean animation) {
mAnimation = animation;
}

public PointPath getPointF() {
return mPointF;
}

public void setPointF(PointPath pointF) {
mPointF = pointF;
}

}

importandroid.graphics.PointF;

import java.util.Random;

public class PointPath {
public  PointF point1;
public  PointF point2;
public  PointF pointC;
public   Random mRandom =new Random();
/*
*       point1 =new PointF(this.getMeasuredWidth()/2,this.getMeasuredHeight()-10);
point2 =new PointF(this.getMeasuredWidth()/2,-80);
pointC1 =new PointF(this.getMeasuredWidth()/2-200,this.getMeasuredHeight()/2);

*
*
* */
public  void creatPointPath(int viewwidth,int  viewHeight,int bitmapwidth) {

point1 =new PointF(viewwidth/2,viewHeight-10);
point2 =new PointF(mRandom.nextInt(viewwidth),-bitmapwidth);
pointC =new PointF(viewwidth-200,viewHeight/2);

}
}

很简单，就不太多的解释了，大家复制进项目里边就能直接用了

demo地址
