一.Table的逻辑结构

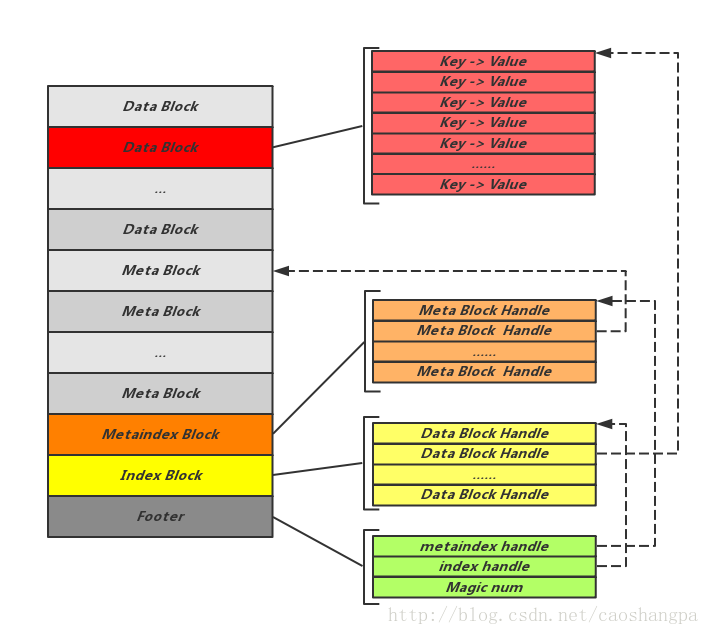

Table也叫SSTable(Sorted String Table),是数据在.sst文件中的存储形式。Table的逻辑结构如下所示,包括存储数据的Block,存储索引信息的Block,存储Filter的Block:
Footer:为于Table尾部,记录指向Metaindex Block的Handle和指向Index Block的Handle。需要说明的是Table中所有的Handle是通过偏移量Offset以及Size一同来表示的,用来指明所指向的Block位置。Footer是SST文件解析开始的地方,通过Footer中记录的这两个关键元信息Block的位置,可以方便的开启之后的解析工作。另外Footer种还记录了用于验证文件是否为合法SST文件的常数值Magicnum。
Index Block:记录Data Block位置信息的Block,其中的每一条Entry指向一个Data Block,其Key值为所指向的Data Block最后一条数据的Key,Value为指向该Data Block位置的Handle。
Metaindex Block:与Index Block类似,由一组Handle组成,不同的是这里的Handle指向的Meta Block。
Data Block:以Key-Value的方式存储实际数据,其中Key定义为:
对比Memtable中的Key,可以发现Data Block中的Key并没有拼接UserKey的长度在UserKey前,这是由于上面讲到的物理结构中已经有了Key的长度信息。
Meta Block:比较特殊的Block,用来存储元信息,目前LevelDB使用的仅有对布隆过滤器的存储。写入Data Block的数据会同时更新对应Meta Block中的过滤器。读取数据时也会首先经过布隆过滤器(Bloom Filter)过滤,我看的源码还未用到Bloom Filter,可参考:BloomFilter——大规模数据处理利器。Meta
Block的物理结构也与其他Block有所不同:
其中每个filter节对应一段Key Range,落在某个Key Range的Key需要到对应的filter节中查找自己的过滤信息,base指定这个Range的大小。
关于Block的结构详见:LevelDB源码分析之十二:block
与Block类似,Table的管理也是读写分离的,读取后的遍历查询操作由table类实现,构建则由TableBuilder类实现。
二.Table的构建
leveldb通过TableBuilder类来构建每一个.sst文件,TableBuilder类的成员变量只有一个结构体Rep* rep_,Rep的结构为:
可以看到Rep中不仅接管了各种Block的生成细节,而且还会记录生成Block需要的一些统计信息。因此我们可以认为,TableBuilder只不过是对Block的一层浅封装,真正做事情的是Rep。而TableBuilder中的Add函数本质上不过是对Rep中BlockBuilder的Add函数的调用。
1.Add函数
通过Add函数向.sst文件中写入一个Data Block。
2.Flush函数
当一个Data Block大小超过设定值(默认为4K)时,执行Flush()操作。
Flush函数先调用WriteBlock向文件添加数据,然后执行file的Flush()函数将文件写入磁盘。
3.WriteBlock
WriteBlock函数实际上就是把block_data进行Snappy压缩(如果支持),然后包装成完整的Block Data,并记录一些统计信息。我用的Windows版LevelDB,代码比较老,默认不支持Snappy压缩。
4.Finish函数
分析Footer类的源码可知,Footer更详细的结构如下:
注意,只在Finish的时候才调用WriteBlock给Index Block添加了type和crc,但是对于Data Block,每次写入到磁盘都会调用一次WriteBlock。
Mate Index Block、Index Block和Footer应该是在WritableFile析构时被写入到磁盘的,WritableFile析构时会调用其Flush函数。
关于WritableFile,详见:LevelDB源码分析之九:env
三.Table的解析
leveldb通过Table类来解析每一个.sst文件,Table类的成员变量也只有一个结构体Rep* rep_,Rep的结构为:
1.Open函数
Open函数比较简单,就是打开一个本地.sst文件,然后从文件尾部读取footer,根据footer中的index_handle,调用ReadBock函数读取index_block。接着对结构体Rep赋值,并将其当做参数传给Table的构造函数。
2.ReadBlock函数
3.NewIterator函数
NewIterator用于创建Table的迭代器,此迭代器是一个双层迭代器,详见:LevelDB源码分析之十四:TwoLevelIterator
传入的参数包括Index Block中block_data字段的迭代器和函数BlockReader的指针,该函数用于创建Data Block中block_data字段的迭代器。
4.BlockReader
5.ApproximateOffsetOf
这个函数用于估算key值所在记录的偏移,不准确。代码中的注释是我的个人理解,也不知对不对。只有看到了调用该函数的代码,才能更深入的理解。
参考链接:http://catkang.github.io/2017/01/17/leveldb-data.html
Table也叫SSTable(Sorted String Table),是数据在.sst文件中的存储形式。Table的逻辑结构如下所示,包括存储数据的Block,存储索引信息的Block,存储Filter的Block:
Footer:为于Table尾部,记录指向Metaindex Block的Handle和指向Index Block的Handle。需要说明的是Table中所有的Handle是通过偏移量Offset以及Size一同来表示的,用来指明所指向的Block位置。Footer是SST文件解析开始的地方,通过Footer中记录的这两个关键元信息Block的位置,可以方便的开启之后的解析工作。另外Footer种还记录了用于验证文件是否为合法SST文件的常数值Magicnum。
Index Block:记录Data Block位置信息的Block,其中的每一条Entry指向一个Data Block,其Key值为所指向的Data Block最后一条数据的Key,Value为指向该Data Block位置的Handle。
Metaindex Block:与Index Block类似,由一组Handle组成,不同的是这里的Handle指向的Meta Block。
Data Block:以Key-Value的方式存储实际数据,其中Key定义为:
DataBlock Key := UserKey + SequenceNum + Type Type := kDelete or kValue
对比Memtable中的Key,可以发现Data Block中的Key并没有拼接UserKey的长度在UserKey前,这是由于上面讲到的物理结构中已经有了Key的长度信息。
Meta Block:比较特殊的Block,用来存储元信息,目前LevelDB使用的仅有对布隆过滤器的存储。写入Data Block的数据会同时更新对应Meta Block中的过滤器。读取数据时也会首先经过布隆过滤器(Bloom Filter)过滤,我看的源码还未用到Bloom Filter,可参考:BloomFilter——大规模数据处理利器。Meta
Block的物理结构也与其他Block有所不同:
[filter 0] [filter 1] [filter 2] ... [filter N-1] [offset of filter 0] : 4 bytes [offset of filter 1] : 4 bytes [offset of filter 2] : 4 bytes ... [offset of filter N-1] : 4 bytes [offset of beginning of offset array] : 4 bytes lg(base) : 1 byte
其中每个filter节对应一段Key Range,落在某个Key Range的Key需要到对应的filter节中查找自己的过滤信息,base指定这个Range的大小。
关于Block的结构详见:LevelDB源码分析之十二:block
与Block类似,Table的管理也是读写分离的,读取后的遍历查询操作由table类实现,构建则由TableBuilder类实现。
二.Table的构建
leveldb通过TableBuilder类来构建每一个.sst文件,TableBuilder类的成员变量只有一个结构体Rep* rep_,Rep的结构为:
struct TableBuilder::Rep { Options options; Options index_block_options; WritableFile* file;//要生成的.sst文件 uint64_t offset;//累加每个Data Block的偏移量 Status status; BlockBuilder data_block;//存储KV对的数据块 BlockBuilder index_block;//数据块对应的索引块 std::string last_key;//上一个插入的key值,新插入的key必须比它大,保证.sst文件中的key是从小到大排列的 int64_t num_entries;//.sst文件中存储的所有记录总数。关于记录可以参考LevelDB源码分析之十二:block bool closed;// 调用Finish()或Abandon()时,closed=true,表示Table构建结束。 bool pending_index_entry;//当一个Data Block被写入到.sst文件时,为true BlockHandle pending_handle; //BlockHandle只有offset_和size_两个变量,用来记录每个Data Block在.sst文件中的偏移量和大小 std::string compressed_output;//Data Block的block_data字段压缩后的结果 Rep(const Options& opt, WritableFile* f) : options(opt), index_block_options(opt), file(f), offset(0), data_block(&options), index_block(&index_block_options), num_entries(0), closed(false), pending_index_entry(false) { index_block_options.block_restart_interval = 1;//Index Block的block_data字段中重启点的间隔 } };
可以看到Rep中不仅接管了各种Block的生成细节,而且还会记录生成Block需要的一些统计信息。因此我们可以认为,TableBuilder只不过是对Block的一层浅封装,真正做事情的是Rep。而TableBuilder中的Add函数本质上不过是对Rep中BlockBuilder的Add函数的调用。
1.Add函数
通过Add函数向.sst文件中写入一个Data Block。
void TableBuilder::Add(const Slice& key, const Slice& value) { Rep* r = rep_; assert(!r->closed); if (!ok()) return; if (r->num_entries > 0) { assert(r->options.comparator->Compare(key, Slice(r->last_key)) > 0); } // 当一个Data Block被写入到磁盘时,为true if (r->pending_index_entry) { // 说明到了新的一个Data Block assert(r->data_block.empty()); // 考虑这两个key"the quick brown fox"和"the who", 进FindShortestSeparator // 处理后,r->last_key=the r。这样的话r->last_key就大于上一个Data Block的 // 所有key,并且小于后面所有Data Block的key。 r->options.comparator->FindShortestSeparator(&r->last_key, key); // 将上一个Data Block的偏移和大小编码后作为Value存放到index_block中 std::string handle_encoding; r->pending_handle.EncodeTo(&handle_encoding); r->index_block.Add(r->last_key, Slice(handle_encoding)); r->pending_index_entry = false; } r->last_key.assign(key.data(), key.size()); r->num_entries++; r->data_block.Add(key, value); const size_t estimated_block_size = r->data_block.CurrentSizeEstimate(); // 如果Data Block的block_data字段大小满足要求,准备写入到磁盘 if (estimated_block_size >= r->options.block_size) { Flush(); } }
2.Flush函数
当一个Data Block大小超过设定值(默认为4K)时,执行Flush()操作。
void TableBuilder::Flush() { Rep* r = rep_; assert(!r->closed); if (!ok()) return; if (r->data_block.empty()) return; assert(!r->pending_index_entry); WriteBlock(&r->data_block, &r->pending_handle); if (ok()) { r->pending_index_entry = true; // 将Data Block实时写入到磁盘,防止缓存中的file过大 r->status = r->file->Flush(); } }
Flush函数先调用WriteBlock向文件添加数据,然后执行file的Flush()函数将文件写入磁盘。
3.WriteBlock
void TableBuilder::WriteBlock(BlockBuilder* block, BlockHandle* handle) { // File format contains a sequence of blocks where each block has: // block_data: uint8 // type: uint8 // crc: uint32 assert(ok()); Rep* r = rep_; // 返回完整的block_data字段 Slice raw = block->Finish(); Slice block_contents; CompressionType type = r->options.compression; // TODO(postrelease): Support more compression options: zlib? switch (type) { case kNoCompression: block_contents = raw; break; // 采用Snappy压缩,Snappy是谷歌开源的压缩库 case kSnappyCompression: { std::string* compressed = &r->compressed_output; if (port::Snappy_Compress(raw.data(), raw.size(), compressed) && compressed->size() < raw.size() - (raw.size() / 8u)) { block_contents = *compressed; } else { // Snappy not supported, or compressed less than 12.5%, so just // store uncompressed form // 如果不支持Snappy压缩,或者压缩比小于12.5%,那就使用原始数据 block_contents = raw; type = kNoCompression; } break; } } // 设置Data Block的偏移和该Data Block的block_data字段的大小 // 第一个Data Block的偏移为0 handle->set_offset(r->offset); handle->set_size(block_contents.size()); r->status = r->file->Append(block_contents); if (r->status.ok()) { char trailer[kBlockTrailerSize]; trailer[0] = type; // 为block_contents添加校验 uint32_t crc = crc32c::Value(block_contents.data(), block_contents.size()); // 为type也添加校验 crc = crc32c::Extend(crc, trailer, 1); // 将校验码拷贝到trailer的后四个字节 EncodeFixed32(trailer+1, crc32c::Mask(crc)); // 向文件尾部添加压缩类型和校验码,这样一个完整的Block Data诞生 r->status = r->file->Append(Slice(trailer, kBlockTrailerSize)); if (r->status.ok()) { // 偏移应该包括压缩类型和校验码的大小 r->offset += block_contents.size() + kBlockTrailerSize; } } r->compressed_output.clear(); // 重置block block->Reset(); }
WriteBlock函数实际上就是把block_data进行Snappy压缩(如果支持),然后包装成完整的Block Data,并记录一些统计信息。我用的Windows版LevelDB,代码比较老,默认不支持Snappy压缩。
4.Finish函数
Status TableBuilder::Finish() { Rep* r = rep_; // 为何要调用一次Flush,是因为调用Finish的时候, // block_data不一定大于等于block_size,所以要调用Flush // 将这部分block_data写入到磁盘 Flush(); assert(!r->closed); r->closed = true; BlockHandle metaindex_block_handle; BlockHandle index_block_handle; if (ok()) { // 我看的源码不支持Meta Block,这里的meta_index_block也没有实际作用 BlockBuilder meta_index_block(&r->options); // metaindex_block_handle记录了Meta Index Block的偏移和大小 WriteBlock(&meta_index_block, &metaindex_block_handle); } if (ok()) { // 最后一个Data_Block,无法进行r->last_key和key的比较, // 所以只能调用FindShortSuccessor,直接取一个比r->last_key大的key if (r->pending_index_entry) { r->options.comparator->FindShortSuccessor(&r->last_key); std::string handle_encoding; r->pending_handle.EncodeTo(&handle_encoding); r->index_block.Add(r->last_key, Slice(handle_encoding)); r->pending_index_entry = false; } // index_block_handle记录了Index Block的偏移和大小 WriteBlock(&r->index_block, &index_block_handle); } if (ok()) { // 组建Footer,并添加到文件结尾 Footer footer; footer.set_metaindex_handle(metaindex_block_handle); footer.set_index_handle(index_block_handle); std::string footer_encoding; footer.EncodeTo(&footer_encoding); r->status = r->file->Append(footer_encoding); if (r->status.ok()) { r->offset += footer_encoding.size(); } } return r->status; }
分析Footer类的源码可知,Footer更详细的结构如下:
metaindex_handle: char[p]; // Block handle for metaindex index_handle: char[q]; // Block handle for index padding: char[40-p-q]; // 0 bytes to make fixed length // (40==2*BlockHandle::kMaxEncodedLength) magic: fixed64; // == 0xdb4775248b80fb57
注意,只在Finish的时候才调用WriteBlock给Index Block添加了type和crc,但是对于Data Block,每次写入到磁盘都会调用一次WriteBlock。
Mate Index Block、Index Block和Footer应该是在WritableFile析构时被写入到磁盘的,WritableFile析构时会调用其Flush函数。
关于WritableFile,详见:LevelDB源码分析之九:env
三.Table的解析
leveldb通过Table类来解析每一个.sst文件,Table类的成员变量也只有一个结构体Rep* rep_,Rep的结构为:
struct Table::Rep { ~Rep() { delete index_block; } Options options; Status status; RandomAccessFile* file; uint64_t cache_id;//block cache的ID,用于组建block cache结点的key BlockHandle metaindex_handle; //用于存储从footer中解析出的metaindex_handle Block* index_block; };
1.Open函数
Open函数比较简单,就是打开一个本地.sst文件,然后从文件尾部读取footer,根据footer中的index_handle,调用ReadBock函数读取index_block。接着对结构体Rep赋值,并将其当做参数传给Table的构造函数。
Status Table::Open(const Options& options, RandomAccessFile* file, uint64_t size, Table** table) { *table = NULL; if (size < Footer::kEncodedLength) { return Status::InvalidArgument("file is too short to be an sstable"); } char footer_space[Footer::kEncodedLength]; Slice footer_input; Status s = file->Read(size - Footer::kEncodedLength, Footer::kEncodedLength, &footer_input, footer_space); if (!s.ok()) return s; Footer footer; s = footer.DecodeFrom(&footer_input); if (!s.ok()) return s; // Read the index block Block* index_block = NULL; if (s.ok()) { s = ReadBlock(file, ReadOptions(), footer.index_handle(), &index_block); } if (s.ok()) { // We've successfully read the footer and the index block: we're // ready to serve requests. Rep* rep = new Table::Rep; rep->options = options; rep->file = file; rep->metaindex_handle = footer.metaindex_handle(); rep->index_block = index_block; rep->cache_id = (options.block_cache ? options.block_cache->NewId() : 0); *table = new Table(rep); } else { if (index_block) delete index_block; } return s; }
2.ReadBlock函数
// 根据BlockHandle从file中读取block_data,放在*block中 Status ReadBlock(RandomAccessFile* file, const ReadOptions& options, const BlockHandle& handle, Block** block) { *block = NULL; // n是block_data的大小 size_t n = static_cast<size_t>(handle.size()); // n + kBlockTrailerSize就是block_data+type+crc的大小 char* buf = new char[n + kBlockTrailerSize]; Slice contents; // 根据Block的偏移读取指定内容 Status s = file->Read(handle.offset(), n + kBlockTrailerSize, &contents, buf); if (!s.ok()) { delete[] buf; return s; } if (contents.size() != n + kBlockTrailerSize) { delete[] buf; return Status::Corruption("truncated block read"); } // 从contents解析出crc并校验,可以通过options.verify_checksums配置不校验 const char* data = contents.data(); if (options.verify_checksums) { const uint32_t crc = crc32c::Unmask(DecodeFixed32(data + n + 1)); const uint32_t actual = crc32c::Value(data, n + 1); if (actual != crc) { delete[] buf; s = Status::Corruption("block checksum mismatch"); return s; } } // data 实际上就是type字段 switch (data ) { case kNoCompression: // if (data != buf) { // File implementation gave us pointer to some other data. // Copy into buf[]. memcpy(buf, data, n + kBlockTrailerSize); } // Ok break; // 我用的源码比较老,不涉及Snappy压缩 case kSnappyCompression: { size_t ulength = 0; if (!port::Snappy_GetUncompressedLength(data, n, &ulength)) { delete[] buf; return Status::Corruption("corrupted compressed block contents"); } char* ubuf = new char[ulength]; if (!port::Snappy_Uncompress(data, n, ubuf)) { delete[] buf; delete[] ubuf; return Status::Corruption("corrupted compressed block contents"); } delete[] buf; buf = ubuf; n = ulength; break; } default: delete[] buf; return Status::Corruption("bad block type"); } *block = new Block(buf, n); // Block takes ownership of buf[] return Status::OK(); }
3.NewIterator函数
NewIterator用于创建Table的迭代器,此迭代器是一个双层迭代器,详见:LevelDB源码分析之十四:TwoLevelIterator
Iterator* Table::NewIterator(const ReadOptions& options) const { return NewTwoLevelIterator( rep_->index_block->NewIterator(rep_->options.comparator), &Table::BlockReader, const_cast<Table*>(this), options); }
传入的参数包括Index Block中block_data字段的迭代器和函数BlockReader的指针,该函数用于创建Data Block中block_data字段的迭代器。
4.BlockReader
// arg:Table的指针 // index_value:Data Block中block_data字段的迭代器的value值, // 也就是Data Block的偏移和该Data Block的block_data字段大小 // 编码后的结果 // return:Data Block中block_data字段的迭代器 Iterator* Table::BlockReader(void* arg, const ReadOptions& options, const Slice& index_value) { Table* table = reinterpret_cast<Table*>(arg); Cache* block_cache = table->rep_->options.block_cache; Block* block = NULL; Cache::Handle* cache_handle = NULL; BlockHandle handle; Slice input = index_value; // 解码得到Data Block的偏移和该Data Block的block_data字段大小 Status s = handle.DecodeFrom(&input); if (s.ok()) { // 1.如果Block Cache不为NULL,先去Block Cache中查找结点, // 如果没找到,再去文件中读取Data Block的block_data字段, // 并将该block_data插入到Block Cache // 2.如果Block Cache为NULL,直接去文件里读 if (block_cache != NULL) { // 组建key char cache_key_buffer[16]; EncodeFixed64(cache_key_buffer, table->rep_->cache_id); EncodeFixed64(cache_key_buffer+8, handle.offset()); Slice key(cache_key_buffer, sizeof(cache_key_buffer)); cache_handle = block_cache->Lookup(key); if (cache_handle != NULL) { block = reinterpret_cast<Block*>(block_cache->Value(cache_handle)); } else { s = ReadBlock(table->rep_->file, options, handle, &block); if (s.ok() && options.fill_cache) { cache_handle = block_cache->Insert( key, block, block->size(), &DeleteCachedBlock); } } } else { s = ReadBlock(table->rep_->file, options, handle, &block); } } Iterator* iter; // 如果block读取成功 if (block != NULL) { iter = block->NewIterator(table->rep_->options.comparator); // iter->RegisterCleanup函数实现会有点绕,被它注册的函数会在iter析构时被调用 // 如果block_cache为NULL,说明block不在缓存中,iter析构时调用DeleteBlock删除这个block。 // 否则调用ReleaseBlock使block_cache的cache_handle结点减少一个引用计数 if (cache_handle == NULL) { iter->RegisterCleanup(&DeleteBlock, block, NULL); } else { iter->RegisterCleanup(&ReleaseBlock, block_cache, cache_handle); } } else { // 否则返回错误 iter = NewErrorIterator(s); } return iter; }
5.ApproximateOffsetOf
这个函数用于估算key值所在记录的偏移,不准确。代码中的注释是我的个人理解,也不知对不对。只有看到了调用该函数的代码,才能更深入的理解。
// 估算key的偏移,不准确 uint64_t Table::ApproximateOffsetOf(const Slice& key) const { Iterator* index_iter = rep_->index_block->NewIterator(rep_->options.comparator); index_iter->Seek(key); uint64_t result; if (index_iter->Valid()) { BlockHandle handle; Slice input = index_iter->value(); Status s = handle.DecodeFrom(&input); // if (s.ok()) { // result比key的真实偏移小 result = handle.offset(); } else { // Strange: we can't decode the block handle in the index block. // We'll just return the offset of the metaindex block, which is // close to the whole file size for this case. // result比key的真实偏移大 result = rep_->metaindex_handle.offset(); } } else { // key is past the last key in the file. Approximate the offset // by returning the offset of the metaindex block (which is // right near the end of the file). // result比key的真实偏移小 result = rep_->metaindex_handle.offset(); } delete index_iter; return result; }
参考链接:http://catkang.github.io/2017/01/17/leveldb-data.html
