iOS - 常用 Animations 动画总结
2018-01-10 16:45
513 查看
动画在软件开发中用的非常频繁,没有动画的软件,就类似于僵尸;所以对 iOS 常用的动画进行归纳总结,参考官方文档以及 UIView 和 QuartzCore 文档,受益颇多
UIViewAnimation
UIView 一般形式动画
UIView 闭包式动画
基础动画
关键帧动画
转场动画
Core Animation 核心动画 基于 CALayer 层级的动画
CAAnimation
核心属性
CAPropertyAnimation
核心属性
CABasicAnimation
新增的的属性
CASpringAnimation
新增的的属性
CAKeyframeAnimation
添加的属性
CAAnimationGroup
新增加的属性
CATransition
新增加的属性
第三方动画Facebook POP
iOS 常用动画分类
UIViewAnimation
Core Animation
第三方动画

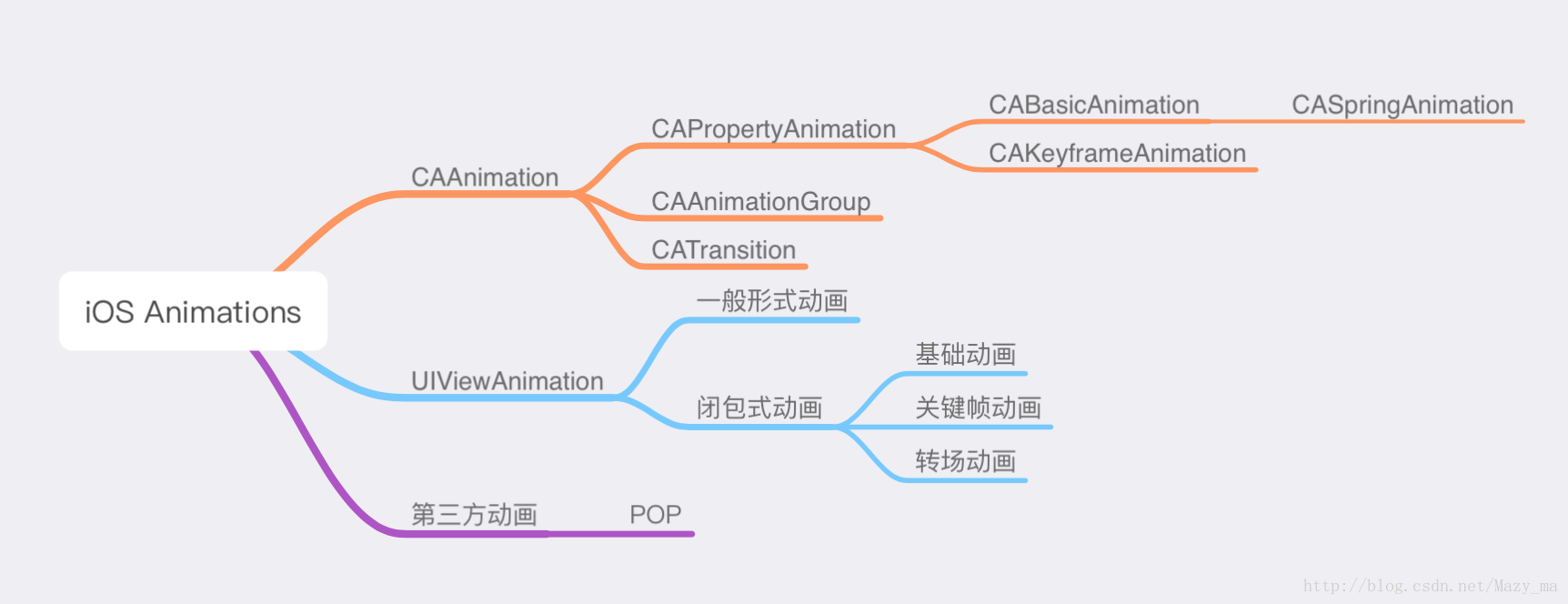

iOS 常用动画思维导图
动画的基本属性
Position 位置
Opacity 透明度
Scale 比例/大小
Color 颜色
Rotate 旋转
Repeat 重复
Spring 弹簧
Status 显示和隐藏状态
…
commitAnimations: 标志动画代码结束,程序会创建新的线程,并准备运行动画
setAnimationStartDate: 设置动画开始时间
setAnimationsEnabled: 可以用来开启或禁止动画显示
setAnimationDelegate: 设置代理,可以接收到UIView的代理方法
setAnimationWillStartSelector: 设置动画开始前将发送给代理的方法
setAnimationDidStopSelector: 设置动画停止后将发送给代理的方法
setAnimationDuration: 设置动画持续时间
setAnimationDelay: 设置一段时间,动画将在这段时间后开始执行
setAnimationCurve: 设置动画曲线,如开始慢,后面快
easeInOut 开始结束慢,中间快
easeIn 开始慢, 加速运动
easeOut 结束慢,减速运动
linear 匀速运动
setAnimationRepeatCount: 设置动画重复次数
areAnimationEnabled: 检查是否已经启动动画
setAnimationTransition: 设置动画的过渡效果
none 无过渡效果
flipFromLeft 从左边开始翻转
flipFromRight 从左边开始翻转
curlUp 向上翻页
curlDown 向下翻页
代码示例
Core Animation 核心动画 (基于
参考资料:
Core Animation
Core Animation Programming Guide
实现步骤:
(1) 建立
(2) 设置它的参数 (代理、间隔、过渡效果、路径、)
(3) 把这个带着参数的过渡添加到图层
UIViewAnimationCurveEaseInOut — 慢慢的开始,快速的过程,慢慢的结束
UIViewAnimationCurveEaseIn — 慢慢的开始,直接加速到结束
UIViewAnimationCurveEaseOut — 快速的开始,然后慢慢的结束
UIViewAnimationCurveLinear — 匀速变化
delegate CAAnimationDelegate 代理,处理动画过程
isRemovedOnCompletion 默认为 true, 动画完成,自动从渲染树中移除掉
toValue 定义了动画结束时的属性值
代码示例
initialVelocity 物体的初始速度
mass 模拟物体的重量, > 0, default = 1
settlingDuration 沉降时间
stiffness 弹簧刚度系数, 0 ~ 100
代码示例
path 点属性依据的路径
keyTimes 一个可选的 NSNumber 对象数组, 给每个关键帧定义时间
timingFunctions 一个可选的 CAMediaTimingFunction 对象数组定义为每个关键帧段过渡
calculationMode 动画运行的模式
kCAAnimationLinear
kCAAnimationDiscrete
kCAAnimationPaced
kCAAnimationCubic
kCAAnimationCubicPaced
rotationMode 决定物体沿路径动画路径上如何旋转
kCAAnimationRotateAuto
kCAAnimationRotateAutoReverse
代码示例
delegate 和 isRemovedOnCompletion 在动画的属性数组中目前被忽略。
CAAnimationGroup 的 delegate 接收这些消息
代码示例
在图层状态之间提供动画转换的对象
提供了一个图层之间的过渡的动画
CATransition 有一个
endProgress 结束时的进度 0~1
type 转换类型
kCATransitionFade (default)
kCATransitionMoveIn
kCATransitionPush
kCATransitionReveal
subtype 基于运动方向预定义的转换
kCATransitionFromLeft
kCATransitionFromRight
kCATransitionFromTop
kCATransitionFromBottom
filter 滤镜
代码示例
代码示例
UIViewAnimation
UIView 一般形式动画
UIView 闭包式动画
基础动画
关键帧动画
转场动画
Core Animation 核心动画 基于 CALayer 层级的动画
CAAnimation
核心属性
CAPropertyAnimation
核心属性
CABasicAnimation
新增的的属性
CASpringAnimation
新增的的属性
CAKeyframeAnimation
添加的属性
CAAnimationGroup
新增加的属性
CATransition
新增加的属性
第三方动画Facebook POP
iOS 常用动画分类
UIViewAnimation
Core Animation
第三方动画
iOS 常用动画思维导图
动画的基本属性
Position 位置
Opacity 透明度
Scale 比例/大小
Color 颜色
Rotate 旋转
Repeat 重复
Spring 弹簧
Status 显示和隐藏状态
…
UIViewAnimation
UIView 一般形式动画
beginAnimations:context: 标志动画代码开始commitAnimations: 标志动画代码结束,程序会创建新的线程,并准备运行动画
setAnimationStartDate: 设置动画开始时间
setAnimationsEnabled: 可以用来开启或禁止动画显示
setAnimationDelegate: 设置代理,可以接收到UIView的代理方法
setAnimationWillStartSelector: 设置动画开始前将发送给代理的方法
setAnimationDidStopSelector: 设置动画停止后将发送给代理的方法
setAnimationDuration: 设置动画持续时间
setAnimationDelay: 设置一段时间,动画将在这段时间后开始执行
setAnimationCurve: 设置动画曲线,如开始慢,后面快
easeInOut 开始结束慢,中间快
easeIn 开始慢, 加速运动
easeOut 结束慢,减速运动
linear 匀速运动
setAnimationRepeatCount: 设置动画重复次数
areAnimationEnabled: 检查是否已经启动动画
setAnimationTransition: 设置动画的过渡效果
none 无过渡效果
flipFromLeft 从左边开始翻转
flipFromRight 从左边开始翻转
curlUp 向上翻页
curlDown 向下翻页
代码示例
// 开始动画 UIView.beginAnimations("Identifier", context: nil) // 设置动画代理 UIView.setAnimationDelegate(self) // 通过 #selector 选择器 添加开始动画方法 UIView.setAnimationWillStart(#selector(animationAction)) // 通过 #selector 选择器 添加结束动画方法 UIView.setAnimationDidStop(#selector(animationAction)) // 设置动画时间间隔 UIView.setAnimationDuration(1.0) // 设置动画延迟 UIView.setAnimationDelay(0) // 设置动画开始的时间,默认是现在开始 UIView.setAnimationStart(Date()) // 设置动画曲线 UIView.setAnimationCurve(.easeInOut) // 设置动画重复次数,默认是 0 UIView.setAnimationRepeatCount(0) // 0 无线循环 // 自动返回原始状态 UIView.setAnimationRepeatAutoreverses(false) // default = NO. used if repeat count is non-zero // 设置动画的开始是从现在的状态开始, 默认是 false UIView.setAnimationBeginsFromCurrentState(false) // 用来开启或禁止动画显示 UIView.setAnimationsEnabled(true) // 设置动画的过渡效果 UIView.setAnimationTransition(.curlUp, for: redView, cache: false) // 设置 UIView 的动画属性 redView.transform = CGAffineTransform(rotationAngle: 90) redView.transform = CGAffineTransform(scaleX: 0.3, y: 0.3) redView.transform = CGAffineTransform(translationX: 0, y: 200) // 动画的状态 print(UIView.areAnimationsEnabled) // 标志动画代码结束,程序会创建新的线程,并准备运行动画 UIView.commitAnimations()
UIView 闭包式动画
基础动画
UIView.animate(withDuration: TimeInterval, animations: ()->Void) UIView.animate(withDuration: TimeInterval, animations: ()->Void, completion: ()->Void) // 带动画曲线动画 UIView.animate(withDuration: TimeInterval, delay: TimeInterval, options: UIViewAnimationOptions, animations: ()->Void, completion: (()->Void)?) // 带弹性动画 UIView.animate(withDuration: TimeInterval, delay: TimeInterval, usingSpringWithDamping: 0, initialSpringVelocity: 0, options: UIViewAnimationOptions, animations: ()->Void, completion: (()->Void)?)
关键帧动画
UIView.animateKeyframes(withDuration: TimeInterval, delay: TimeInterval, options: UIViewKeyframeAnimationOptions, animations: ()->Void, completion: (()->Void)?) // 添加帧 UIView.addKeyframe(withRelativeStartTime: Double, relativeDuration: Double, animations: ()->Void)
转场动画
UIView.transition(with: UIView, duration: TimeInterval, options: UIViewAnimationOptions, animations: ()->Void, completion: (()->Void)?) // toView added to fromView.superview, fromView removed from its superview // 视图的添加和移除动画 UIView.transition(from: UIView, to: UIView, duration: TimeInterval, options: UIViewAnimationOptions, completion: (()->Void)?)
Core Animation 核心动画 (基于 CALayer
层级的动画)
参考资料:Core Animation
Core Animation Programming Guide
实现步骤:
(1) 建立
CAAnimation子类对象
(2) 设置它的参数 (代理、间隔、过渡效果、路径、)
(3) 把这个带着参数的过渡添加到图层
CAAnimation
核心动画基础类,所有的动画类基于此类核心属性:
timingFunction - 一种可选的定时功能,用于定义动画的节奏UIViewAnimationCurveEaseInOut — 慢慢的开始,快速的过程,慢慢的结束
UIViewAnimationCurveEaseIn — 慢慢的开始,直接加速到结束
UIViewAnimationCurveEaseOut — 快速的开始,然后慢慢的结束
UIViewAnimationCurveLinear — 匀速变化
delegate CAAnimationDelegate 代理,处理动画过程
isRemovedOnCompletion 默认为 true, 动画完成,自动从渲染树中移除掉
CAPropertyAnimation
抽象类,基于CAAnimation,专门用来设置 layer 属性的动画类
核心属性:
keyPath用于描述动画属性的关键路径值
CAPropertyAnimation的
keyPath动画属性总结
属性 | 介绍 |
---|---|
anchorPoint | 锚点 |
backgroundColor | 背景色 |
borderColor | 边框颜色 |
borderWidth | 边框宽度 |
bounds | 大小 |
contents | 内容,可以放其他视图,包括图片 |
contentsRect | 内容大小 |
cornerRadius | 圆角 |
filters | 滤镜,模糊 |
hidden | 隐藏 |
mask | 遮挡, 控制内容视图展示大小 |
masksToBounds | 是否截切掉超过子视图的部分 |
opacity | 透明度 |
position | 位置 |
shadowColor | 阴影颜色 |
shadowOffset | 阴影偏移 |
shadowOpacity | 阴影的透明度 |
shadowPath | 阴影的路径 |
shadowRadius | 阴影的圆角 |
sublayers | 子图层 |
sublayerTransform | 子图层的变形 |
transform | 变形 |
zPosition | Z轴方向的位置 |
CABasicAnimation
基于 CAPropertyAnimation,动画的基础类新增的的属性
fromValue 定义了动画开始时的属性值toValue 定义了动画结束时的属性值
代码示例
let animation = CABasicAnimation(keyPath: "backgroundColor") animation.fromValue = UIColor.green.cgColor animation.toValue = UIColor.blue.cgColor animation.duration = 1.0 animation.isRemovedOnCompletion = true redView.layer.add(animation, forKey: nil)
CASpringAnimation
基于CABasicAnimation属性动画的弹性动画
新增的的属性
damping 阻尼弹簧运动的摩擦力, 0.0 ~ 1.0initialVelocity 物体的初始速度
mass 模拟物体的重量, > 0, default = 1
settlingDuration 沉降时间
stiffness 弹簧刚度系数, 0 ~ 100
代码示例
let springAnimation = CASpringAnimation(keyPath: "bounds.size") springAnimation.toValue = NSValue(cgSize: CGSize(width: 250, height: 250)) springAnimation.duration = 1.0 springAnimation.damping = 0.5 // 0.0 to 1.0 springAnimation.initialVelocity = 10 springAnimation.mass = 5 springAnimation.stiffness = 50 redView.layer.add(springAnimation, forKey: nil)
CAKeyframeAnimation
基于属性动画,添加关键帧动画功能添加的属性
valuse 一个对象数组,指定关键帧动画值来使用path 点属性依据的路径
keyTimes 一个可选的 NSNumber 对象数组, 给每个关键帧定义时间
timingFunctions 一个可选的 CAMediaTimingFunction 对象数组定义为每个关键帧段过渡
calculationMode 动画运行的模式
kCAAnimationLinear
kCAAnimationDiscrete
kCAAnimationPaced
kCAAnimationCubic
kCAAnimationCubicPaced
rotationMode 决定物体沿路径动画路径上如何旋转
kCAAnimationRotateAuto
kCAAnimationRotateAutoReverse
代码示例
let colorKeyframeAnimation = CAKeyframeAnimation(keyPath: "backgroundColor") colorKeyframeAnimation.values = [UIColor.red.cgColor, UIColor.green.cgColor, UIColor.blue.cgColor] colorKeyframeAnimation.keyTimes = [0, 0.5, 1] colorKeyframeAnimation.duration = 2 colorKeyframeAnimation.calculationMode = kCAAnimationLinear redView.layer.add(colorKeyframeAnimation, forKey: nil)
CAAnimationGroup
将多个动画组合和并发运行delegate 和 isRemovedOnCompletion 在动画的属性数组中目前被忽略。
CAAnimationGroup 的 delegate 接收这些消息
新增加的属性
animationsCAAnimation数组,用于添加多个
CAAnimation动画
代码示例
let fadeOut = CABasicAnimation(keyPath: "opacity") fadeOut.fromValue = 1 fadeOut.toValue = 0 fadeOut.duration = 1 let expandScale = CABasicAnimation() expandScale.keyPath = "transform" expandScale.valueFunction = CAValueFunction(name: kCAValueFunctionScale) expandScale.fromValue = [1, 1, 1] expandScale.toValue = [3, 3, 3] let fadeAndScale = CAAnimationGroup() fadeAndScale.animations = [fadeOut, expandScale] fadeAndScale.duration = 1 redView.layer.add(fadeAndScale, forKey: nil)
CATransition
CAAnimation的子类在图层状态之间提供动画转换的对象
提供了一个图层之间的过渡的动画
CATransition 有一个
type和
subtype来标识变换效果
新增加的属性
startProgress 开始的进度 0~1endProgress 结束时的进度 0~1
type 转换类型
kCATransitionFade (default)
kCATransitionMoveIn
kCATransitionPush
kCATransitionReveal
subtype 基于运动方向预定义的转换
kCATransitionFromLeft
kCATransitionFromRight
kCATransitionFromTop
kCATransitionFromBottom
filter 滤镜
代码示例
let animation = CATransition() animation.duration = 1.0 animation.timingFunction = CAMediaTimingFunction(name: kCAMediaTimingFunctionLinear) // `fade', `moveIn', `push' and `reveal'. Defaults to `fade' animation.type = kCATransitionReveal // `fromLeft', `fromRight', `fromTop' and `fromBottom' animation.subtype = kCATransitionFromTop animation.isRemovedOnCompletion = true animation.startProgress = 0.5 redView.layer.add(animation, forKey: nil)
第三方动画:Facebook POP
POP 是 Facebook 出品的一款很强大的动画引擎,使用简洁,效果非常不错代码示例
if let anim = POPSpringAnimation(propertyNamed: kPOPLayerBounds) { anim.toValue = NSValue(cgRect: CGRect(x: 0, y: 0, width: 400, height: 400)) layer.pop_add(anim, forKey: "size") } if let anim = POPBasicAnimation(propertyNamed: kPOPViewAlpha) { anim.timingFunction = CAMediaTimingFunction(name: kCAMediaTimingFunctionEaseInEaseOut) anim.fromValue = 0.0 anim.toValue = 1.0 view.pop_add(anim, forKey: "fade") } // .......
