最近看博客看到有关于RelativeLayout布局的解释,有的解释很多是错误的。因此有必要对每一个常见的布局属性进行描述。以下解释全部都是逐行进行测试的。
[html] view plain copyprint? 首先把常用的布局分组。(会对所有的对其方式解释,且主要讨论layout_alignleft layout_toleftof区别)
android:layout_above 将该控件的底部至于给定ID的控件之上(只写一行代该控件底部与id控件上边缘对其,且默认于父布局左边)
android:layout_below 将该控件的顶部至于给定ID的控件之下(只写一行代该控件顶部与id控件下边缘对其,且默认于父布局左边)
android:layout_toLeftOf 将该控件的右边缘和给定ID的控件的左边缘对齐,默认是位于父布局的顶部
android:layout_toRightOf 将该控件的左边缘和给定ID的控件的右边缘对齐,默认位于父布局的顶部
(默认父布局的左和上)
android:layout_alignBaseline 该控件的baseline和给定ID的控件的baseline对齐
android:layout_alignBottom 将该控件的底部边缘与给定ID控件的底部边缘对其(该控件还是默认位于父布局的左边)
android:layout_alignTop 将给定控件的顶部边缘与给定ID控件的顶部对齐(该控件还是默认位于父布局的左边)效果和上边一样
android:layout_alignLeft 将该控件的左边缘与给定ID控件的左边缘对齐(该控件默认位于父布局的上边)
android:layout_alignRight 将该控件的右边缘与给定ID控件的右边缘对齐(该控件默认位于父布局的上边)此时效果和上边效果一样
(默认父布局的左和上) android:alignParentBottom 如果该值为true,则将该控件的底部和父控件的底部对齐(只写一行默认左下)
android:layout_alignParentLeft 如果该值为true,则将该控件的左边与父控件的左边对齐(只写一条默认左上)
android:layout_alignParentRight 如果该值为true,则将该控件的右边与父控件的右边对齐(默认右上)
android:layout_alignParentTop 如果该值为true,则将空间的顶部与父控件的顶部对齐(只写一条默认左上)
(默认父布局的左和上)
android:layout_centerHorizontal 如果值为真,该控件将被至于水平方向的中央(默认父布局的上方)
android:layout_centerInParent 如果值为真,该控件将被至于父控件水平方向和垂直方向的中央
android:layout_centerVertical 如果值为真,该控件将被至于垂直方向的中央(默认父布局的左边)
显然layout_alignleft layout_toleftof区别就一目了然。通过代码和图片再一次视觉上区分:
首先看layout_aliginleft:
[html] view plain copyprint?<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
4000
tools:context="com.itheima.helloworld.MainActivity">
<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerInParent="true"
android:text="button1"
/>
<Button
android:id="@+id/button2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignLeft="@id/button1"
android:text="button2"
/>
</RelativeLayout>

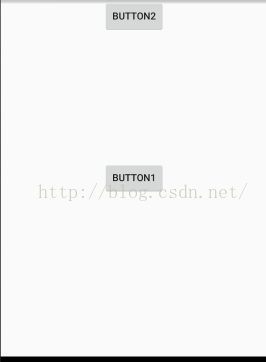

图片:
![](https://img-blog.csdn.net/20160524131813508?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQv/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/Center)
再来看layout_toleftof代码如下:
[html] view plain copyprint?<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.itheima.helloworld.MainActivity">
<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerInParent="true"
android:text="button1"
/>
<Button
android:id="@+id/button2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_toLeftOf="@id/button1"
android:text="button2"
/>
</RelativeLayout>
图片如下:
![](https://img-blog.csdn.net/20160524132051542?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQv/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/Center)
对于相对布局的基本用法,应该一目了然。
最近看博客看到有关于RelativeLayout布局的解释,有的解释很多是错误的。因此有必要对每一个常见的布局属性进行描述。以下解释全部都是逐行进行测试的。
[html] view plain copyprint? 首先把常用的布局分组。(会对所有的对其方式解释,且主要讨论layout_alignleft layout_toleftof区别)
android:layout_above 将该控件的底部至于给定ID的控件之上(只写一行代该控件底部与id控件上边缘对其,且默认于父布局左边)
android:layout_below 将该控件的顶部至于给定ID的控件之下(只写一行代该控件顶部与id控件下边缘对其,且默认于父布局左边)
android:layout_toLeftOf 将该控件的右边缘和给定ID的控件的左边缘对齐,默认是位于父布局的顶部
android:layout_toRightOf 将该控件的左边缘和给定ID的控件的右边缘对齐,默认位于父布局的顶部
(默认父布局的左和上)
android:layout_alignBaseline 该控件的baseline和给定ID的控件的baseline对齐
android:layout_alignBottom 将该控件的底部边缘与给定ID控件的底部边缘对其(该控件还是默认位于父布局的左边)
android:layout_alignTop 将给定控件的顶部边缘与给定ID控件的顶部对齐(该控件还是默认位于父布局的左边)效果和上边一样
android:layout_alignLeft 将该控件的左边缘与给定ID控件的左边缘对齐(该控件默认位于父布局的上边)
android:layout_alignRight 将该控件的右边缘与给定ID控件的右边缘对齐(该控件默认位于父布局的上边)此时效果和上边效果一样
(默认父布局的左和上) android:alignParentBottom 如果该值为true,则将该控件的底部和父控件的底部对齐(只写一行默认左下)
android:layout_alignParentLeft 如果该值为true,则将该控件的左边与父控件的左边对齐(只写一条默认左上)
android:layout_alignParentRight 如果该值为true,则将该控件的右边与父控件的右边对齐(默认右上)
android:layout_alignParentTop 如果该值为true,则将空间的顶部与父控件的顶部对齐(只写一条默认左上)
(默认父布局的左和上)
android:layout_centerHorizontal 如果值为真,该控件将被至于水平方向的中央(默认父布局的上方)
android:layout_centerInParent 如果值为真,该控件将被至于父控件水平方向和垂直方向的中央
android:layout_centerVertical 如果值为真,该控件将被至于垂直方向的中央(默认父布局的左边)
首先把常用的布局分组。(会对所有的对其方式解释,且主要讨论layout_alignleft layout_toleftof区别) android:layout_above 将该控件的底部至于给定ID的控件之上(只写一行代该控件底部与id控件上边缘对其,且默认于父布局左边) android:layout_below 将该控件的顶部至于给定ID的控件之下(只写一行代该控件顶部与id控件下边缘对其,且默认于父布局左边) android:layout_toLeftOf 将该控件的右边缘和给定ID的控件的左边缘对齐,默认是位于父布局的顶部 android:layout_toRightOf 将该控件的左边缘和给定ID的控件的右边缘对齐,默认位于父布局的顶部 (默认父布局的左和上) android:layout_alignBaseline 该控件的baseline和给定ID的控件的baseline对齐 android:layout_alignBottom 将该控件的底部边缘与给定ID控件的底部边缘对其(该控件还是默认位于父布局的左边) android:layout_alignTop 将给定控件的顶部边缘与给定ID控件的顶部对齐(该控件还是默认位于父布局的左边)效果和上边一样 android:layout_alignLeft 将该控件的左边缘与给定ID控件的左边缘对齐(该控件默认位于父布局的上边) android:layout_alignRight 将该控件的右边缘与给定ID控件的右边缘对齐(该控件默认位于父布局的上边)此时效果和上边效果一样 (默认父布局的左和上) android:alignParentBottom 如果该值为true,则将该控件的底部和父控件的底部对齐(只写一行默认左下) android:layout_alignParentLeft 如果该值为true,则将该控件的左边与父控件的左边对齐(只写一条默认左上) android:layout_alignParentRight 如果该值为true,则将该控件的右边与父控件的右边对齐(默认右上) android:layout_alignParentTop 如果该值为true,则将空间的顶部与父控件的顶部对齐(只写一条默认左上) (默认父布局的左和上) android:layout_centerHorizontal 如果值为真,该控件将被至于水平方向的中央(默认父布局的上方) android:layout_centerInParent 如果值为真,该控件将被至于父控件水平方向和垂直方向的中央 android:layout_centerVertical 如果值为真,该控件将被至于垂直方向的中央(默认父布局的左边)
显然layout_alignleft layout_toleftof区别就一目了然。通过代码和图片再一次视觉上区分:
首先看layout_aliginleft:
[html] view plain copyprint?<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
4000
tools:context="com.itheima.helloworld.MainActivity">
<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerInParent="true"
android:text="button1"
/>
<Button
android:id="@+id/button2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignLeft="@id/button1"
android:text="button2"
/>
</RelativeLayout>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.itheima.helloworld.MainActivity"> <Button android:id="@+id/button1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerInParent="true" android:text="button1" /> <Button android:id="@+id/button2" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignLeft="@id/button1" android:text="button2" /> </RelativeLayout>
图片:
再来看layout_toleftof代码如下:
[html] view plain copyprint?<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.itheima.helloworld.MainActivity">
<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_centerInParent="true"
android:text="button1"
/>
<Button
android:id="@+id/button2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_toLeftOf="@id/button1"
android:text="button2"
/>
</RelativeLayout>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="com.itheima.helloworld.MainActivity"> <Button android:id="@+id/button1" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_centerInParent="true" android:text="button1" /> <Button android:id="@+id/button2" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_toLeftOf="@id/button1" android:text="button2" /> </RelativeLayout>
图片如下:
对于相对布局的基本用法,应该一目了然。
