获取attrs.xml中声明的自定义属性的值
2017-07-06 17:47
239 查看
关键代码:

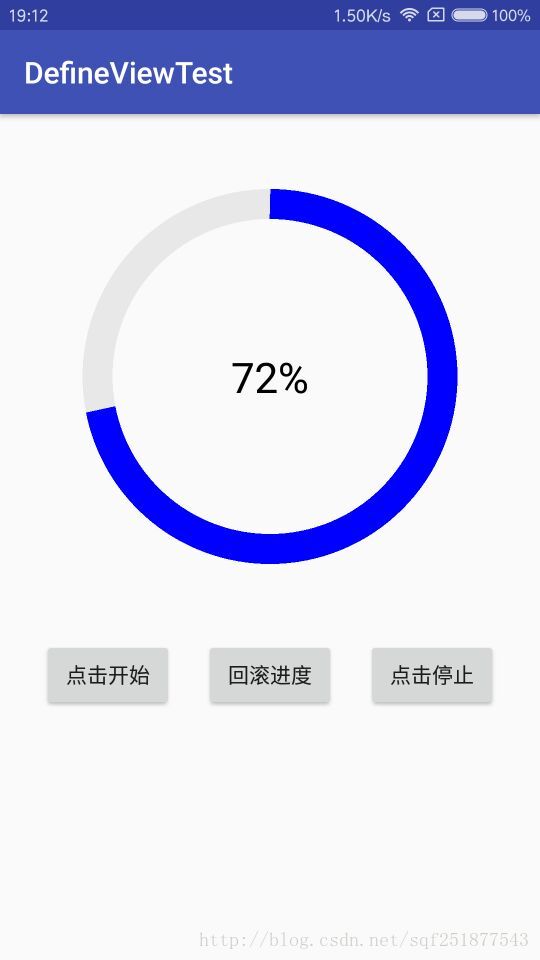

下面写一个下载的环形进度条为例,如图:
![](https://img-blog.csdn.net/20170904191358220?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvc3FmMjUxODc3NTQz/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/SouthEast)
1、在values文件夹下新建attrs.xml文件,声明要自定义的属性
2、写自定义的view
3、使用:
private void init(Context context,AttributeSet attrs) { TypedArray ta = context.obtainStyledAttributes(attrs, R.styleable.CircleView); mRadiu = ta.getDimensionPixelSize(R.styleable.CircleView_radiu,0); mBgColor = ta.getColor(R.styleable.CircleView_bg_color,0); ta.recycle(); }
下面写一个下载的环形进度条为例,如图:
1、在values文件夹下新建attrs.xml文件,声明要自定义的属性
<?xml version="1.0" encoding="utf-8"?> <resources> <declare-styleable name="CircleProgressBar"> <attr name="progress_color" format="color"/> <attr name="background_color" format="color"/> <attr name="stroke_width" format="dimension"/> <attr name="max_value" format="integer"/> <attr name="current_value" format="integer"/> <attr name="text_size" format="dimension"/> <attr name="text_color" format="color"/> </declare-styleable> </resources>
2、写自定义的view
public class CircleProgressBar extends View { public static int TOTAL_DURATION = 10000; public static int DEFAULT_PROGRESS_COLOR = Color.BLUE; public static int DEFAULT_BACKGROUND_COLOR = Color.GRAY; public static int DEFAULT_STROKE_WIDTH = ScreenSizeUtil.dpToPx(40); public static int DEFAULT_TEXT_SIZE = ScreenSizeUtil.spToPx(28); public static int DEFAULT_TEXT_COLOR = Color.BLACK; private Paint mBackgroundPaint = new Paint(); private Paint mPaint = new Paint(); private Paint mTextPaint = new Paint(Paint.ANTI_ALIAS_FLAG); private int mProgressColor; private int mBackgroundColor; private int mStrokeWidth; private int mMaxValue = 100; private int mCurrentValue = 0; private int mCircleRadius; private Point mCenterPoint; //环形进度条的原点坐标 private RectF mOval = new RectF(); private ValueAnimator mAnimator; private boolean isAnimating = false; private String mProgress = ""; private ProgressChangeListener mListener; public CircleProgressBar(Context context) { super(context); init(context, null); } public CircleProgressBar(Context context, AttributeSet attrs) { super(context, attrs); init(context, attrs); } public CircleProgressBar(Context context, AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); init(context, attrs); } private void init(Context context, AttributeSet attrs) { TypedArray ta = context.obtainStyledAttributes(attrs, R.styleable.CircleProgressBar); mProgressColor = ta.getColor(R.styleable.CircleProgressBar_progress_color, DEFAULT_PROGRESS_COLOR); mBackgroundColor = ta.getColor(R.styleable.CircleProgressBar_background_color, DEFAULT_BACKGROUND_COLOR); mStrokeWidth = ta.getDimensionPixelSize(R.styleable.CircleProgressBar_stroke_width, DEFAULT_STROKE_WIDTH); mMaxValue = ta.getInt(R.styleable.CircleProgressBar_max_value, 100); mCurrentValue = ta.getInt(R.styleable.CircleProgressBar_current_value, 0); int textSize = ta.getDimensionPixelSize(R.styleable.CircleProgressBar_text_size, DEFAULT_TEXT_SIZE); int 4000 textColor = ta.getColor(R.styleable.CircleProgressBar_text_color, DEFAULT_TEXT_COLOR); ta.recycle(); initPaint(textSize, textColor); setProgress(mCurrentValue); mCenterPoint = new Point(); } //设置进度条当前值 public void setProgress(int progress) { if (progress > mCurrentValue && progress < 0) { return; } if (isAnimating) { isAnimating = false; mAnimator.cancel(); } int oldValue = mCurrentValue; mCurrentValue = progress; startAnimation(oldValue, progress); } public void stopProgress(){ if (isAnimating) { isAnimating = false; mAnimator.cancel(); } } private void initPaint(int textSize, int textColor) { mTextPaint.setColor(textColor); mTextPaint.setTextSize(textSize); mTextPaint.setTextAlign(Paint.Align.CENTER); mPaint.setColor(mProgressColor); mPaint.setStyle(Paint.Style.STROKE); mPaint.setStrokeWidth(mStrokeWidth); mBackgroundPaint.setColor(mBackgroundColor); mBackgroundPaint.setStyle(Paint.Style.STROKE); mBackgroundPaint.setStrokeWidth(mStrokeWidth); } @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { super.onMeasure(widthMeasureSpec, heightMeasureSpec); int width = getMeasuredWidth() - getPaddingLeft() - getPaddingRight(); int height = getMeasuredHeight() - getPaddingTop() - getPaddingBottom(); //Math.min(a, b) 返回a、b中叫较小的一个 mCircleRadius = (Math.min(width, height) - mStrokeWidth) / 2; mCenterPoint.set(width / 2, height / 2); } @Override protected void onDraw(Canvas canvas) { if (mListener != null){ mProgress = mListener.changeProgress(this,mCurrentValue,mMaxValue); } canvas.drawCircle(mCenterPoint.x, mCenterPoint.y, mCircleRadius, mBackgroundPaint); mOval.left = mCenterPoint.x - mCircleRadius; mOval.right = mCenterPoint.y + mCircleRadius; mOval.top = mCenterPoint.y - mCircleRadius; mOval.bottom = mCenterPoint.y + mCircleRadius; /** * 画圆弧 drawArc(RectF oval, float startAngle, float sweepAngle, boolean useCenter, Paint paint) * 第一个参数:设置圆弧的形状和大小的范围 * 第二个参数:设置圆弧是从哪个角度来顺时针绘画的 * 第三个参数:设置圆弧扫过的角度 * 第四个参数:设置圆弧在绘画的时候是否经过圆形 */ canvas.drawArc(mOval, 270, 360 * mCurrentValue / mMaxValue, false, mPaint); Paint.FontMetricsInt fontMetrics = mTextPaint.getFontMetricsInt(); float baseline = mOval.top + (mOval.height() - fontMetrics.bottom + fontMetrics.top) / 2 - fontMetrics.top; canvas.drawText(mProgress, mCenterPoint.x, baseline, mTextPaint); } private void startAnimation(int start, int end) { mAnimator = ValueAnimator.ofInt(start, end); int duration = Math.abs(TOTAL_DURATION * (end - start) / mMaxValue); mAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() { @Override public void onAnimationUpdate(ValueAnimator animation) { mCurrentValue = (int) animation.getAnimatedValue(); invalidate(); } }); mAnimator.addListener(new Animator.AnimatorListener() { @Override public void onAnimationStart(Animator animation) { isAnimating = true; } @Override public void onAnimationEnd(Animator animation) { isAnimating = false; } @Override public void onAnimationCancel(Animator animation) { } @Override public void onAnimationRepeat(Animator animation) { } }); mAnimator.setDuration(duration); mAnimator.start(); } public interface ProgressChangeListener{ String changeProgress(CircleProgressBar bar,int currentValue,int maxValue); } public void setOnProgressChangeListener(ProgressChangeListener progressChangeListener){ this.mListener = progressChangeListener; } }
3、使用:
public class MainActivity extends AppCompatActivity { private CircleProgressBar mBar; private Button mStartBtn, mResumeBtn,mStopBtn; private int count; protected static final int STOP = 0x10000; protected static final int NEXT = 0x10001; private Handler myHandler = new Handler(){ @Override public void handleMessage(Message msg) { super.handleMessage(msg); switch (msg.what) { case STOP: break; case NEXT: if (!Thread.currentThread().isInterrupted()) { mBar.setProgress(count); } } } }; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initView(); setClick(); } private void initView() { mBar = (CircleProgressBar) findViewById(R.id.bar); mStartBtn = (Button) findViewById(R.id.btn_start); mResumeBtn = (Button) findViewById(R.id.btn_resume); mStopBtn = (Button) findViewById(R.id.btn_stop); mBar.setOnProgressChangeListener(new CircleProgressBar.ProgressChangeListener() { @Override public String changeProgress(CircleProgressBar bar, int currentValue, int maxValue) { return 100 * currentValue / maxValue + "%"; } }); } private void setClick() { mStartBtn.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View view) { count = 0; new Thread(new Runnable() { @Override public void run() { for (int i = 0; i < 20; i++) { try { count = (i + 1) * 5; if (i == 19) { Message msg = new Message(); msg.what = STOP; myHandler.sendMessage(msg); } else { Message msg = new Message(); msg.what = NEXT; myHandler.sendMessage(msg); } } catch (Exception e) { e.printStackTrace(); } } } }).start(); } }); mResumeBtn.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View view) { mBar.setProgress(0); } }); mStopBtn.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View view) { mBar.stopProgress(); } }); } }
