cocos2d-x 基础系列 (01) 创建一个只有退出程序按钮的demo
2017-03-24 22:51
549 查看
在之前的文章中已经熟悉了coco2d-x的基本用法,这个系列主要分析它的一些类,结合官网提供coco2d-x Programmers Guide v3.12.pdf
pdf下载地址
https://pan.baidu.com/s/1bp3UDP1
看完了一大半左右,感觉没有实际写代码好,所以只是走马观花匆匆地扫过去。另外在github上提供更适合新手学习的代码,programmers-guide-samples-3.10.zip,操作性比coco2d-x源文件自带的CppTest强一点,因为都是一些基本操作的。看它的名字应该是基于version 3.12的。
里面的内容分成十几个章节,这个系列就是学习这些小代码的,可能会分得更细一些,一下子给太多容易掌握不住,每次进步一点点,累积起来就是巨大的进步。
很多的地方会加上自己的注释,或者查看官网提供的API手册,不懂的地方还希望见谅,毕竟在游戏上我也是新手。
源码demo下载地址
https://pan.baidu.com/s/1pKWwjcJ
第一篇创建只有一个退出按钮的demo,代替原来提供的HelloWorldScene.cpp类。
先把那四个类的源码粘贴出来
AppDelegate.h
Delegate的字面的意思就是代表的意思,现在我们需要知道的大概是applicationDidFinishLaunching, applicationDidEnterBackground, applicationWillEnterForeground
根据字面意思就可以推断出来,第一个表示程序需要完成的内容,第二个表示程序进入后台,第三个表示程序讲进入前台。
这几个大概意思知道就可以了,写coco2d-x engine的人都替我们写好了。
AppDelegate.cpp
这里对新手来说比较疑惑的是GL是什么,就是一组图像渲染的接口,还没到学习OpenGL的地步,有兴趣可以自己查阅资料。
需要弄清楚几个尺寸,这里选用的是mediumResolutionSize 1024 × 768
4000
后面还有对象的尺寸,基点等,对我们计算物体的位置十分重要。
真正需要关注的是auto scene = MainScene::createScene(); 创建一个场景,大概可以翻译成场景,
编程手册上打了一个比方说Driector类似于拍电影的导演,Scene类似于场景。
Animation就是动画吧,英语都比较直白,比较好理解。
开始创建我们自己的场景,命名为
MainScene.h
英文注释已经说的很清楚了,CREATE_FUNC是一个宏,我觉得没有必要在现在就进行深入理解,除非你的C++功底特别深厚。
我猜大概的意思是向系统注册这个MainScene.
MainScene.cpp
MenuItemImage和Menu是应该是被包含的关系,一个Menu中可以创建好多的Item,最后以NULL结尾,C++11是用nullptr,不过表达的意思是一样的。
origin.x指的是可见尺寸的原点,在坐下角,visibleSize.width是指屏幕的宽度,closeItem->getContentSize()是指物体的尺寸。
Item的原点是在图片的正中间(0.5, 0.5),那么根据这么计算就可以得出是把Item放在右下角了。
点按钮回调相应的函数安卓中很多,知道怎么注册怎么用就可以了。

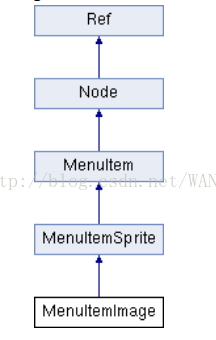

MenuItemImage的继承关系图
![](https://img-blog.csdn.net/20170324224749045?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvV0FOX0VYRQ==/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/Center)
差不多就可以编译运行。
![](https://img-blog.csdn.net/20170324224935781?watermark/2/text/aHR0cDovL2Jsb2cuY3Nkbi5uZXQvV0FOX0VYRQ==/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70/gravity/Center)
手机上运行也是相同的效果,点击按钮会退出。
pdf下载地址
https://pan.baidu.com/s/1bp3UDP1
看完了一大半左右,感觉没有实际写代码好,所以只是走马观花匆匆地扫过去。另外在github上提供更适合新手学习的代码,programmers-guide-samples-3.10.zip,操作性比coco2d-x源文件自带的CppTest强一点,因为都是一些基本操作的。看它的名字应该是基于version 3.12的。
里面的内容分成十几个章节,这个系列就是学习这些小代码的,可能会分得更细一些,一下子给太多容易掌握不住,每次进步一点点,累积起来就是巨大的进步。
很多的地方会加上自己的注释,或者查看官网提供的API手册,不懂的地方还希望见谅,毕竟在游戏上我也是新手。
源码demo下载地址
https://pan.baidu.com/s/1pKWwjcJ
第一篇创建只有一个退出按钮的demo,代替原来提供的HelloWorldScene.cpp类。
先把那四个类的源码粘贴出来
AppDelegate.h
Delegate的字面的意思就是代表的意思,现在我们需要知道的大概是applicationDidFinishLaunching, applicationDidEnterBackground, applicationWillEnterForeground
根据字面意思就可以推断出来,第一个表示程序需要完成的内容,第二个表示程序进入后台,第三个表示程序讲进入前台。
这几个大概意思知道就可以了,写coco2d-x engine的人都替我们写好了。
#ifndef _APP_DELEGATE_H_ #define _APP_DELEGATE_H_ #include "cocos2d.h" /** @brief The cocos2d Application. Private inheritance here hides part of interface from Director. */ class AppDelegate : private cocos2d::Application { public: AppDelegate(); virtual ~AppDelegate(); virtual void initGLContextAttrs(); /** @brief Implement Director and Scene init code here. @return true Initialize success, app continue. @return false Initialize failed, app terminate. */ virtual bool applicationDidFinishLaunching(); /** @brief Called when the application moves to the background @param the pointer of the application */ virtual void applicationDidEnterBackground(); /** @brief Called when the application reenters the foreground @param the pointer of the application */ virtual void applicationWillEnterForeground(); }; #endif // _APP_DELEGATE_H_
AppDelegate.cpp
这里对新手来说比较疑惑的是GL是什么,就是一组图像渲染的接口,还没到学习OpenGL的地步,有兴趣可以自己查阅资料。
需要弄清楚几个尺寸,这里选用的是mediumResolutionSize 1024 × 768
4000
后面还有对象的尺寸,基点等,对我们计算物体的位置十分重要。
真正需要关注的是auto scene = MainScene::createScene(); 创建一个场景,大概可以翻译成场景,
编程手册上打了一个比方说Driector类似于拍电影的导演,Scene类似于场景。
Animation就是动画吧,英语都比较直白,比较好理解。
#include "AppDelegate.h" #include "MainScene.h" USING_NS_CC; static cocos2d::Size designResolutionSize = cocos2d::Size(480, 320); static cocos2d::Size smallResolutionSize = cocos2d::Size(480, 320); static cocos2d::Size mediumResolutionSize = cocos2d::Size(1024, 768); static cocos2d::Size largeResolutionSize = cocos2d::Size(2048, 1536); AppDelegate::AppDelegate() { } AppDelegate::~AppDelegate() { } // if you want a different context, modify the value of glContextAttrs // it will affect all platforms void AppDelegate::initGLContextAttrs() { /* GLContextAttrs Struct * set OpenGL context attributes: * redBits, greenBits, blueBits, alphaBits, depthBits, stencilBits * /SourceCode/cocos/platform/CCLView.h */ GLContextAttrs glContextAttrs = {8, 8, 8, 8, 24, 8}; GLView::setGLContextAttrs(glContextAttrs); } // if you want to use the package manager to install more packages, // don't modify or remove this function static int register_all_packages() { return 0; //flag for packages manager } bool AppDelegate::applicationDidFinishLaunching() { // initialize director auto director = Director::getInstance(); auto glview = director->getOpenGLView(); if(!glview) { #if (CC_TARGET_PLATFORM == CC_PLATFORM_WIN32) || (CC_TARGET_PLATFORM == CC_PLATFORM_MAC) || (CC_TARGET_PLATFORM == CC_PLATFORM_LINUX) glview = GLViewImpl::createWithRect("GameDemo", cocos2d::Rect(0, 0, mediumResolutionSize.width, mediumResolutionSize.height)); #else glview = GLViewImpl::create("GameDemo"); #endif director->setOpenGLView(glview); } // turn on display FPS // director->setDisplayStats(true); // set FPS. the default value is 1.0/60 if you don't call this // director->setAnimationInterval(1.0f / 60); // Set the design resolution glview->setDesignResolutionSize(designResolutionSize.width, designResolutionSize.height, ResolutionPolicy::NO_BORDER); auto frameSize = glview->getFrameSize(); // if the frame's height is larger than the height of medium size. if (frameSize.height > mediumResolutionSize.height) { director->setContentScaleFactor(MIN(largeResolutionSize.height/designResolutionSize.height, largeResolutionSize.width/designResolutionSize.width)); } // if the frame's height is larger than the height of small size. else if (frameSize.height > smallResolutionSize.height) { director->setContentScaleFactor(MIN(mediumResolutionSize.height/designResolutionSize.height, mediumResolutionSize.width/designResolutionSize.width)); } // if the frame's height is smaller than the height of medium size. else { director->setContentScaleFactor(MIN(smallResolutionSize.height/designResolutionSize.height, smallResolutionSize.width/designResolutionSize.width)); } register_all_packages(); // create a scene. it's an autorelease object auto scene = MainScene::createScene(); // run director->runWithScene(scene); return true; } // This function will be called when the app is inactive. Note, when receiving a phone call it is invoked. void AppDelegate::applicationDidEnterBackground() { Director::getInstance()->stopAnimation(); // if you use SimpleAudioEngine, it must be paused // SimpleAudioEngine::getInstance()->pauseBackgroundMusic(); } // this function will be called when the app is active again void AppDelegate::applicationWillEnterForeground() { Director::getInstance()->startAnimation(); // if you use SimpleAudioEngine, it must resume here // SimpleAudioEngine::getInstance()->resumeBackgroundMusic(); }
开始创建我们自己的场景,命名为
MainScene.h
英文注释已经说的很清楚了,CREATE_FUNC是一个宏,我觉得没有必要在现在就进行深入理解,除非你的C++功底特别深厚。
我猜大概的意思是向系统注册这个MainScene.
#ifndef MAINSCENE_H #define MAINSCENE_H #include "cocos2d.h" class MainScene : public cocos2d::Node { public: // There's no 'id' in cpp, so we recommend returning the class // instance pointer static cocos2d::Scene *createScene(); // Here's a difference. Method 'init' in cocos2d-x return bool, // instead of returning 'id' in cocos2d-iphone virtual bool init(); // a selector callback void onMenuCloseCallback(cocos2d::Ref *sender); CREATE_FUNC(MainScene); }; #endif
MainScene.cpp
MenuItemImage和Menu是应该是被包含的关系,一个Menu中可以创建好多的Item,最后以NULL结尾,C++11是用nullptr,不过表达的意思是一样的。
origin.x指的是可见尺寸的原点,在坐下角,visibleSize.width是指屏幕的宽度,closeItem->getContentSize()是指物体的尺寸。
Item的原点是在图片的正中间(0.5, 0.5),那么根据这么计算就可以得出是把Item放在右下角了。
点按钮回调相应的函数安卓中很多,知道怎么注册怎么用就可以了。
MenuItemImage的继承关系图
#include "MainScene.h" USING_NS_CC; Scene *MainScene::createScene() { // 'scene' is an autorelease object auto scene = Scene::create(); // 'layer' is an autorelease object auto layer = MainScene::create(); // add layer as a child to scene scene->addChild(layer); // return the scene return scene; } // On "init" you need to initialize your instance bool MainScene::init() { // Super init first if (!Node::init()) return false; Size visibleSize = Director::getInstance()->getVisibleSize(); // Return visible origin coordinate of the OpenGL view in points Vec2 origin = Director::getInstance()->getVisibleOrigin(); // Add a menu item with "X" image, which is clicked to quit the program // Add a "close" icon to exit the progress, it's an autorelease object auto closeItem = MenuItemImage::create("CloseNormal.png", "CloseSelected.png", CC_CALLBACK_1(MainScene::onMenuCloseCallback, this)); // getContentsSize() // Returns the untransoformed size of the node // default value (0.5, 0.5) closeItem->setPosition(Vec2(origin.x + visibleSize.width - closeItem->getContentSize().width/2, origin.y + closeItem->getContentSize().height/2)); // create menu, it's an autorelease object auto closeMenu = Menu::create(closeItem, NULL); closeMenu->setPosition(Vec2::ZERO); this->addChild(closeMenu, 1); return true; } void MainScene::onMenuCloseCallback(Ref *sender) { Director::getInstance()->end(); }
差不多就可以编译运行。
手机上运行也是相同的效果,点击按钮会退出。
