Android 学习之 Fragment(一)
2016-07-29 22:22
537 查看
本文作为阅读郭霖老师《第一行代码Android》的一次笔记!
那么,这里我们将一个屏幕分成2个碎片,一个左碎片,一个右碎片,他们的布局文件为 左碎片一个Button,右碎片一个TextView
left_fragment.xml
有了房间的装修图,进一步需要按照装修图进行装修,将其变成现实... 这里需要写一个Fragment的子类,并且重写onCreateView函数,在Activity引用Fragment的时候会调用这个函数进行加载,在这个函数里我们就会把对应的碎片布局加载进来变成现实哈
LeftFragment.java
RightFragment.java
Activity.xml
其实这样已经完成了碎片的使用,看图:
another_right_fragment.xml
在主函数中实现点击按钮,进行切换碎片
这里根据屏幕大小的特征限定符,新建一个large的layout,方法如下图
新建之后会在activity_main中出现2个xml文件,其中一个后面会有large的标示,代表这个是提供给超大屏幕设备的资源。2个xml文件的内容如下
activity_main.xml
activity_main.xml(large)
OK, 分别在手机和平板上运行一下,看看效果,手机的效果如下,加载了普通的xml
平板的效果如下,加载了large的xml
Android为什么引入碎片Fragment?
现在形形色色的Android设备,屏幕尺寸各有不同,同样的布局,可能在不同的设备上有着不同的效果,比如在手机上显示很完美,到了大屏的平板上也许就拉伸的很难看了,所以Android引入碎片这个概念,就是让一个APP能够兼容不同屏幕大小的Android设备,一个apk可以在各种设备上完美的使用,听起来很nice了。在布局中,Fragement实际上是Activity的一部分,目的就是让程序更加合理和充分的利用屏幕的空间,也可以动态的去选择不同的碎片来适应整个屏幕, 听起来是不是很省心省力, 下面就来体验一下.1. 碎片的简单用法
这里主要是体验一下如何使用碎片了,首先碎片要对应一个布局,布局用来干什么, 应该是来确定这个碎片要放什么,如何摆放,碎片可以理解成一个装修房子的设计图,我的主屏幕当然是房子了,我可以划定一块区域专门用来放碎片,比如主卧,我可以设计好几种不同的装修风格,当然我也可以把整个房子全部弄成碎片...那么,这里我们将一个屏幕分成2个碎片,一个左碎片,一个右碎片,他们的布局文件为 左碎片一个Button,右碎片一个TextView
left_fragment.xml
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent"> <Button android:id="@+id/left_frag_button" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="我是左边碎片的按钮"/> </LinearLayout>right_fragment.xml
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent"> <TextView android:id="@+id/right_frag_textview" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#00ffff" android:text="我是右边碎片的文本"/> </LinearLayout>
有了房间的装修图,进一步需要按照装修图进行装修,将其变成现实... 这里需要写一个Fragment的子类,并且重写onCreateView函数,在Activity引用Fragment的时候会调用这个函数进行加载,在这个函数里我们就会把对应的碎片布局加载进来变成现实哈
LeftFragment.java
public class LeftFragment extends Fragment { @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { View view = inflater.inflate(R.layout.left_fragment,container,false); return view; } }
RightFragment.java
public class RightFragment extends Fragment { @Nullable @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { View view = inflater.inflate(R.layout.right_fragment,container,false); return view; } }
Activity.xml
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" > <fragment class="com.example.androidstudy.fragmenttest.LeftFragment" android:id="@+id/left_fragment" android:layout_weight="1" android:layout_width="0px" android:layout_height="match_parent" /> <FrameLayout android:id="@+id/right_layout" android:layout_width="match_parent" android:layout_height="match_parent"> <fragment class="com.example.androidstudy.fragmenttest.RightFragment" android:id="@+id/right_fragment" android:layout_width="match_parent" android:layout_height="match_parent" /> </FrameLayout> </LinearLayout>这里左边有一个Fragment,右边又有一个FrameLayout的布局,里面放着一个fragment!使用fragment标签来添加碎片,这里有个class就是添加碎片的类名了...

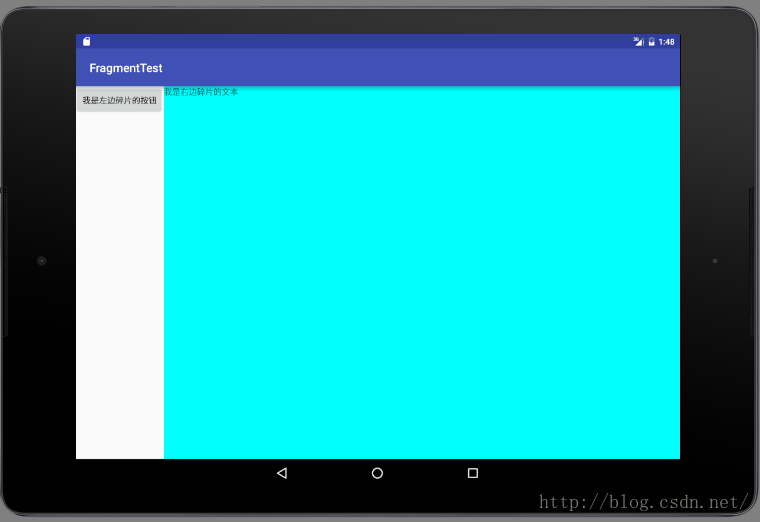

其实这样已经完成了碎片的使用,看图:
2.动态加载碎片
上面简单的把碎片显示出来了,这根本没有达到我们的目的.那如何在运行时动态的加载呢? 比如说我的房间我住了几年不喜欢了,想换一种装修风格,怎么办,拆了重新换,虽然在现实生活中很难,但是在Android的世界里,想换就换,比如说这里在有一个其他的Fragment布局,我想点一下按钮,就换到另外一个Fragment,先写一个Another的布局another_right_fragment.xml
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#00ff00"> <TextView android:id="@+id/right_frag_textview" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="我是动态加载之后的文本哦" /> </LinearLayout>同样也是创建一个AnotherRightFragment class
public class AnotherRightFragment extends Fragment { @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { View view = inflater.inflate(R.layout.another_right_fragment, container,false); return view; } }
在主函数中实现点击按钮,进行切换碎片

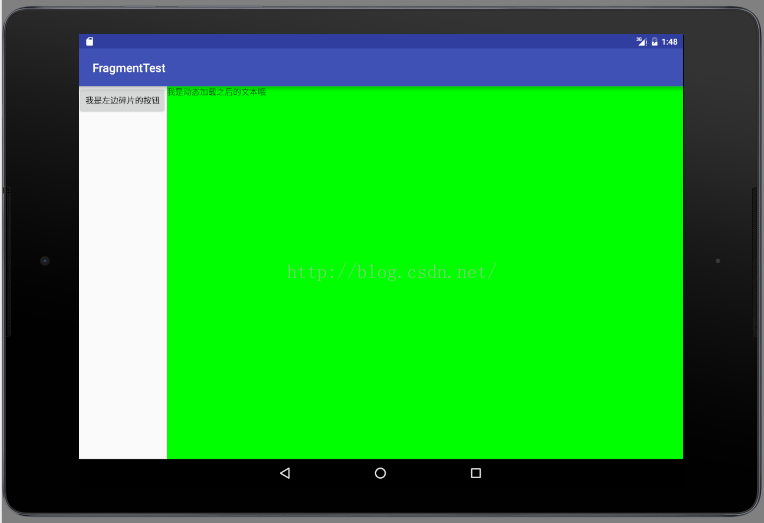

public class MainActivity extends AppCompatActivity implements View.OnClickListener { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); Button b = (Button) findViewById(R.id.left_frag_button); b.setOnClickListener(this); } public void onClick(View v){ switch (v.getId()){ case R.id.left_frag_button: //1.创建待添加的碎片实例 AnotherRightFragment fragment = new AnotherRightFragment(); //2.获取到FragmentManager,在活动中可以直接调用getFragmentManager()方法得到 FragmentManager fragmentManager = getFragmentManager(); //3.开启一个事务,通过调用beginTransaction()方法开启 FragmentTransaction transaction = fragmentManager.beginTransaction(); //4.向容器内添加碎片,一般使用replace()方法实现,需要传入容器的id和待添加的碎片实例 transaction.replace(R.id.right_layout, fragment); //5.提交事务,调用commit()方法来完成 transaction.commit(); default: break; } } }这里要引用一个FragmentManager来开启一个事务,利用事务来完成碎片的replace!事务属于数据库的一个名词,可能需要到学习的时候再来详细的介绍了,这个地方目前可以先记住,先看下点击按钮后的效果图:
3.在碎片中模拟返回栈
从上面的动态加载碎片功能中,我们按下返回键的时候就退出了,并没有之前Activity 栈的感觉,那么能不能实现那样的效果呢? 即我们在按返回键的时候就直接返回到上一个fragment,这个其实是比较容易实现的,一个API 就搞定了,就是FragmentTransaction中的addTobackStack方法, 这个可以自己体验一下!public class MainActivity extends AppCompatActivity implements View.OnClickListener { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); Button b = (Button) findViewById(R.id.left_frag_button); b.setOnClickListener(this); } public void onClick(View v){ switch (v.getId()){ case R.id.left_frag_button: AnotherRightFragment another = new AnotherRightFragment(); FragmentManager manager = getFragmentManager(); FragmentTransaction trans = manager.beginTransaction(); trans.replace(R.id.right_layout,another); trans.addToBackStack(null); trans.commit(); break; default: break; } } }
4.动态加载布局的技巧

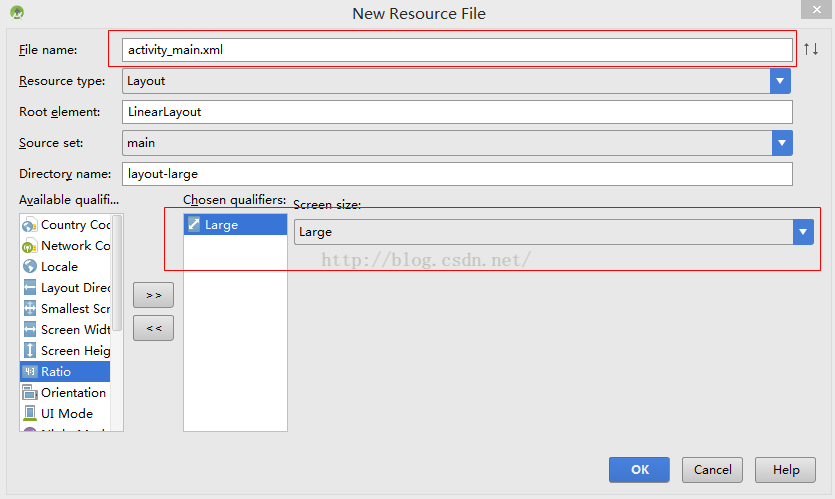

这个地方其实实际的功能就是我们设计2套方案,让系统自己去选,选择一个适应的方案,我们在设计一个显示单页的layout,一个显示双页的layout,在使用大屏的平板设备时自动选择双页显示,在使用手机时就选择单页显示!要完成这个功能就需要使用到限定符了,其实这就是一个界限来,来划分屏幕的大小分辨率等!这里根据屏幕大小的特征限定符,新建一个large的layout,方法如下图
新建之后会在activity_main中出现2个xml文件,其中一个后面会有large的标示,代表这个是提供给超大屏幕设备的资源。2个xml文件的内容如下
activity_main.xml
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" > <fragment class="com.example.androidstudy.fragmenttest.LeftFragment" android:id="@+id/left_fragment" android:layout_weight="1" android:layout_width="0px" android:layout_height="match_parent" /> </LinearLayout>
activity_main.xml(large)
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="horizontal" android:layout_width="match_parent" android:layout_height="match_parent"> <fragment class="com.example.androidstudy.fragmenttest.LeftFragment" android:id="@+id/left_fragment" android:layout_weight="1" android:layout_width="0dp" android:layout_height="match_parent" /> <fragment class="com.example.androidstudy.fragmenttest.RightFragment" android:id="@+id/right_fragment" android:layout_width="0dp" android:layout_weight="3" android:layout_height="match_parent" /> </LinearLayout>

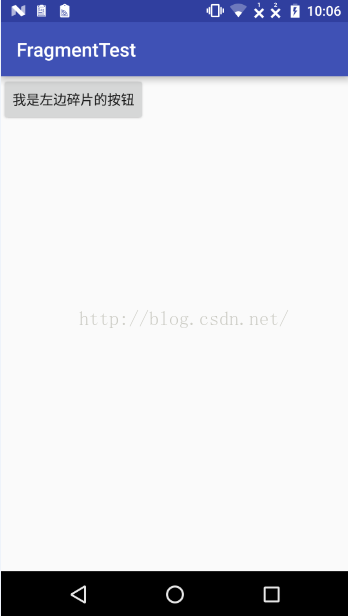

OK, 分别在手机和平板上运行一下,看看效果,手机的效果如下,加载了普通的xml
平板的效果如下,加载了large的xml
总结:
以上内容主要介绍了Fragment的使用,从简单的尝试到动态加载来适应不同的设备。下面还会有一篇文章专门介绍一下碎片的生命周期,以及碎片与Activity之间的通讯,以及一个小的实例。相关文章推荐
