继续补充Gazebo的使用,在这之前说明下我的环境。
操作系统:Ubuntu14.04lts
ROS系统版本:Indigo
看这篇文章前,建议先看我写的上一篇文章,【ROS学习笔记】二、Gazebo的使用上
好的,我们继续。
我们继续按照教程走。
一、使用ROS命令将新的对象加入到Gazebo模拟器中。
1)首先我们打开终端,roscore核心记得运行起来。
2)再开一个新的终端,使用roslaunch命令打开一个空的gazebo(注意这是重新开始了,如果你是直接从上篇看过来的,请直接进入到4)小节)
ros wiki上是用的是以下命令
如果你是indigo版本,使用以下命令
打开了一个新的Gazebo界面。
3)将上次写的蓝色盒子的urdf文件导入进去,如果你不明白这里的话,请看我上一篇博客。
4)使用roslaunch命令为模拟器中添加一张桌子
打开终端,输入以下命令
首先,使用终端,进入到gazebo_ros文件夹下。
建立一个objects文件夹,这里主要用来储存后续的模型文件
然后,使用终端,进入到gazebo_ros下launch文件夹下。
你会发现这里有一些launch文件,比如你最开始是用的empty_worlds.launch文件就在这里。
接着,我们使用命令,创建一个table.launch文件
将以下代码复制进去(这段代码是官方提供的,Indigo版本不适用,后面我会讲到如何改过来)
保存并关闭文件。
使用roslaunch命令运行我们的launch文件
终端会提示错误,一大堆,使用indigo版本的人到这里其实是有三处错误,使用其他版本的也许只有一处,这里以indigo版本为例。
a)首先,你缺少了一个模型文件,即table的模型文件,我们使用的launch文件只是添加模型,但模型的具体文件不存在,需要我们手动建立。
我们进入到前面建立的objects文件夹下,建立一个名为table.urdf.xacro格式的文件
如果你嫌麻烦,我已经将这个文件上传了,你们下载下来,放到这个路径下就行了,table.urdf.xcaro下载
不怕麻烦的,将以下代码填入这个文件中:
官方wiki一样ros版本的朋友你可以直接允许roslaunch table.launch命令了,然后跳过b)、c)两个小节,indigo版本的继续往下看
indigo版本运行roslaunch gazebo_ros table.launch文件你会发现出现这样的错误
那就对了,我们继续向下看。
b)修改table.launch文件
将table.launch的代码中的这句
保存退出,然后你发现运行roslaunch gazebo_ros table.launch
你会发现出现这样的错误:
关键错误出来了,ERROR:cannot launch node of type [gazebo/spawn_model]: gazebo
原来是在已经运行的节点名称不对,找不到这个gazebo名字啊
熟悉ros的朋友这会估计已经可以自己解决了,跳过c)也能自己正常做到了
好的,我们根据这个,找到我们前面打开的empty_worlds.launch这个文件
发现其中尾部有一句关键句为:
而table.launch文件对应的为:
c)将pkg改正过来
我们再次编辑table.launch文件,将这段代码:
然后保存关闭。
那么ros indigo 版本下,正确的table.launch文件代码全文如下:
终端中运行正确的launch文件
你会发现没有报错,如果这个时候还报错,你就从头看一下,是否是哪个步骤没做好?
然后你会看到你的gazebo模拟器中,出现了如图所示的一张桌子:
恭喜你,你已经学会了如何通过roslaunch命令导入相关的模型了。
5)使用launch文件导入多个模型
为了方便,我们把这两个物体写到一个launch文件中,一次性运行可以导入两个;
首先,把最开始写的object.urdf复制到/opt/ros/indigo/share/gazebo_ros/objects路径下,然后到launch文件夹下建立all.launch文件
将以下代码复制:
运行all.launch文件
(×)有一个问题,我自己也没法解决?
这个问题我自己尝试解决,试了很多也没有找到解决方法,希望有人可以指点一下我。
问题描述:
官方文档中最后有一步是添加一杯咖啡,但我失败了!
我在官方模型库中发现模型文件的类型除了urdf外,还有一个model类型,但这种类型我没法通过roslaunch进行添加,我在官方源里找到对应的的roslaunch文件,发现并没有办法运行,错误提示为:gazebo这种类型不适用。
不明所以,希望有才者可以解我疑惑。
操作系统:Ubuntu14.04lts
ROS系统版本:Indigo
看这篇文章前,建议先看我写的上一篇文章,【ROS学习笔记】二、Gazebo的使用上
好的,我们继续。
我们继续按照教程走。
一、使用ROS命令将新的对象加入到Gazebo模拟器中。
1)首先我们打开终端,roscore核心记得运行起来。
roscore
2)再开一个新的终端,使用roslaunch命令打开一个空的gazebo(注意这是重新开始了,如果你是直接从上篇看过来的,请直接进入到4)小节)
ros wiki上是用的是以下命令
roslaunch gazebo_worlds empty_world.launch原因是因为官方在此处用的并不是ros indigo版本,可能是jade也可能是hydro,具体的我也不清楚,这里给大家推荐一个方法,如何确定gazebo_后面的参数,一般来说,ros会安装在/opt路径下,那么我们进入到/opt/ros/xxx(你的版本,我的是indigo)/share/ , 在这个文件夹下,可以找到你的gazebo_xxx,你可以看到你的后续应该跟的文件名称,是worlds 还是ros就在这里看。
如果你是indigo版本,使用以下命令
roslaunch gazebo_ros empty_world.launch
打开了一个新的Gazebo界面。
3)将上次写的蓝色盒子的urdf文件导入进去,如果你不明白这里的话,请看我上一篇博客。
rosrun gazebo_ros spawn_model -file `pwd`/object.urdf -urdf -z 1 -model my_object
4)使用roslaunch命令为模拟器中添加一张桌子
打开终端,输入以下命令
roslaunch gazebo_ros table.launch有的朋友说,我没有找到gazebo_ros 的launch文件夹下有这个table.launch文件,当然没有,这个是要自己写的,官方知识让你看看,具体的要自己动手。
首先,使用终端,进入到gazebo_ros文件夹下。
cd /opt/ros/indigo/share/gazebo_ros
建立一个objects文件夹,这里主要用来储存后续的模型文件
sudo mkdir objects
然后,使用终端,进入到gazebo_ros下launch文件夹下。
cd /opt/ros/indigo/share/gazebo_ros/launch
你会发现这里有一些launch文件,比如你最开始是用的empty_worlds.launch文件就在这里。
接着,我们使用命令,创建一个table.launch文件
sudo gedit table.launch
将以下代码复制进去(这段代码是官方提供的,Indigo版本不适用,后面我会讲到如何改过来)
<launch> <!-- send table urdf to param server --> <param name="table_description" command="$(find xacro)/xacro.py $(find gazebo_worlds)/objects/table.urdf.xacro" /> <!-- push table_description to factory and spawn robot in gazebo --> <node name="spawn_table" pkg="gazebo" type="spawn_model" args="-urdf -param table_description -z 0.01 -model table_model" respawn="false" output="screen" /> </launch>
保存并关闭文件。
使用roslaunch命令运行我们的launch文件
rosluanch gazebo_ros table.launch
终端会提示错误,一大堆,使用indigo版本的人到这里其实是有三处错误,使用其他版本的也许只有一处,这里以indigo版本为例。
a)首先,你缺少了一个模型文件,即table的模型文件,我们使用的launch文件只是添加模型,但模型的具体文件不存在,需要我们手动建立。
我们进入到前面建立的objects文件夹下,建立一个名为table.urdf.xacro格式的文件
cd /opt/ros/indigo/share/gazebo_ros/objects
sudo gedit table.urdf.xacro
如果你嫌麻烦,我已经将这个文件上传了,你们下载下来,放到这个路径下就行了,table.urdf.xcaro下载
不怕麻烦的,将以下代码填入这个文件中:
<?xml version="1.0"?> <robot name="table" xmlns:xi="http://www.w3.org/2001/XInclude" xmlns:gazebo="http://playerstage.sourceforge.net/gazebo/xmlschema/#gz" xmlns:model="http://playerstage.sourceforge.net/gazebo/xmlschema/#model" xmlns:sensor="http://playerstage.sourceforge.net/gazebo/xmlschema/#sensor" xmlns:body="http://playerstage.sourceforge.net/gazebo/xmlschema/#body" xmlns:geom="http://playerstage.sourceforge.net/gazebo/xmlschema/#geom" xmlns:joint="http://playerstage.sourceforge.net/gazebo/xmlschema/#joint" xmlns:interface="http://playerstage.sourceforge.net/gazebo/xmlschema/#interface" xmlns:rendering="http://playerstage.sourceforge.net/gazebo/xmlschema/#rendering" xmlns:renderable="http://playerstage.sourceforge.net/gazebo/xmlschema/#renderable" xmlns:controller="http://playerstage.sourceforge.net/gazebo/xmlschema/#controller" xmlns:physics="http://playerstage.sourceforge.net/gazebo/xmlschema/#physics"> <property name="table_height" value="0.55" /> <property name="table_width" value="1.0" /> <property name="table_depth" value="2.0" /> <property name="leg_radius" value="0.02" /> <property name="table_x" value="0.98" /> <property name="table_y" value="0.0" /> <property name="table_z" value="0.0" /> <property name="table_top_thickness" value="0.05"/> <property name="M_PI" value="3.1415926535897931" /> <!-- tabletop height is .55+.01+.025=.585 --> <link name="table_top_link"> <inertial> <mass value="1.0" /> <origin xyz="${table_x} ${table_y} ${table_z+table_height-table_top_thickness/2}" /> <inertia ixx="1" ixy="0" ixz="0" iyy="1" iyz="0" izz="1" /> </inertial> <visual> <origin xyz="${table_x} ${table_y} ${table_z+table_height-table_top_thickness/2}" /> <geometry> <box size="${table_width} ${table_depth} ${table_top_thickness}" /> </geometry> </visual> <collision> <origin xyz="${table_x} ${table_y} ${table_z+table_height-table_top_thickness/2}" /> <geometry> <box size="${table_width} ${table_depth} ${table_top_thickness}" /> </geometry> </collision> </link> <gazebo reference="table_top_link"> <material>Gazebo/Wood</material> <mu1>50.0</mu1> <mu2>50.0</mu2> <kp>1000000.0</kp> <kd>1.0</kd> </gazebo> <joint name="leg1_joint" type="fixed" > <parent link="table_top_link" /> <origin xyz="${table_x+table_width/2} ${table_y+table_depth/2} ${table_z+table_height}" rpy="0 0 0" /> <child link="leg1_link" /> </joint> <link name="leg1_link"> <inertial> <mass value="1.0" /> <origin xyz="0 0 ${-table_height/2}" /> <inertia ixx="0.1" ixy="0" ixz="0" iyy="0.1" iyz="0" izz="0.01" /> </inertial> <visual> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0 0 0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </visual> <collision> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0.0 0.0 0.0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </collision> </link> <gazebo reference="leg1_link"> <material>Gazebo/Red</material> <mu1>1000.0</mu1> <mu2>1000.0</mu2> <kp>10000000.0</kp> <kd>1.0</kd> <selfCollide>true</selfCollide> </gazebo> <joint name="leg2_joint" type="fixed" > <parent link="table_top_link" /> <origin xyz="${table_x-table_width/2} ${table_y+table_depth/2} ${table_z+table_height}" rpy="0 0 0" /> <child link="leg2_link" /> </joint> <link name="leg2_link"> <inertial> <mass value="1.0" /> <origin xyz="0 0 ${-table_height/2}" /> <inertia ixx="0.1" ixy="0" ixz="0" iyy="0.1" iyz="0" izz="0.01" /> </inertial> <visual> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0 0 0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </visual> <collision> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0.0 0.0 0.0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </collision> </link> <gazebo reference="leg2_link"> <material>Gazebo/Red</material> <mu1>1000.0</mu1> <mu2>1000.0</mu2> <kp>10000000.0</kp> <kd>1.0</kd> <selfCollide>true</selfCollide> </gazebo> <joint name="leg3_joint" type="fixed" > <parent link="table_top_link" /> <origin xyz="${table_x+table_width/2} ${table_y-table_depth/2} ${table_z+table_height}" rpy="0 0 0" /> <child link="leg3_link" /> </joint> <link name="leg3_link"> <inertial> <mass value="1.0" /> <origin xyz="0 0 ${-table_height/2}" /> <inertia ixx="0.1" ixy="0" ixz="0" iyy="0.1" iyz="0" izz="0.01" /> </inertial> <visual> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0 0 0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </visual> <collision> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0.0 0.0 0.0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </collision> </link> <gazebo reference="leg3_link"> <material>Gazebo/Red</material> <mu1>1000.0</mu1> <mu2>1000.0</mu2> <kp>10000000.0</kp> <kd>1.0</kd> <selfCollide>true</selfCollide> </gazebo> <joint name="leg4_joint" type="fixed" > <parent link="table_top_link" /> <origin xyz="${table_x-table_width/2} ${table_y-table_depth/2} ${table_z+table_height}" rpy="0 0 0" /> <child link="leg4_link" /> </joint> <link name="leg4_link"> <inertial> <mass value="1.0" /> <origin xyz="0 0 ${-table_height/2}" /> <inertia ixx="0.1" ixy="0" ixz="0" iyy="0.1" iyz="0" izz="0.01" /> </inertial> <visual> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0 0 0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </visual> <collision> <origin xyz="0.0 0.0 ${-table_height/2}" rpy="0.0 0.0 0.0" /> <geometry> <cylinder radius="${leg_radius}" length="${table_height}" /> </geometry> </collision> </link> <gazebo reference="leg4_link"> <material>Gazebo/Red</material> <mu1>1000.0</mu1> <mu2>1000.0</mu2> <kp>10000000.0</kp> <kd>1.0</kd> <selfCollide>true</selfCollide> </gazebo> <gazebo> <static>true</static> <canonicalBody>table_top_link</canonicalBody> </gazebo> </robot>保存并关闭文件。
官方wiki一样ros版本的朋友你可以直接允许roslaunch table.launch命令了,然后跳过b)、c)两个小节,indigo版本的继续往下看

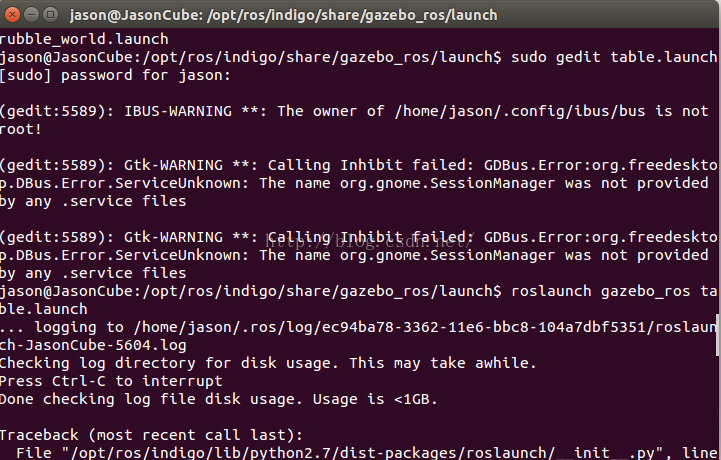

indigo版本运行roslaunch gazebo_ros table.launch文件你会发现出现这样的错误
那就对了,我们继续向下看。
b)修改table.launch文件
将table.launch的代码中的这句
<param name="table_description" command="$(find xacro)/xacro.py $(find gazebo_worlds)/objects/table.urdf.xacro" />替换为
<param name="table_description" command="$(find xacro)/xacro.py $(find gazebo_ros)/objects/table.urdf.xacro" />原因是因为我们使用的indigo版本对应的文件夹名称为gazebo_ros而非gazebo_worlds
保存退出,然后你发现运行roslaunch gazebo_ros table.launch

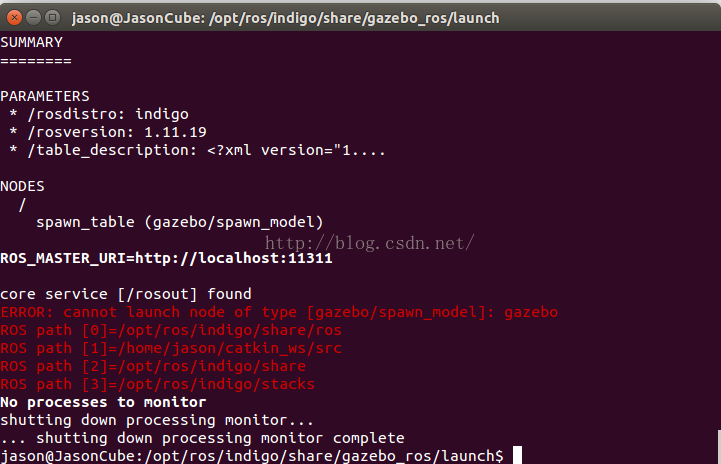

你会发现出现这样的错误:
关键错误出来了,ERROR:cannot launch node of type [gazebo/spawn_model]: gazebo
原来是在已经运行的节点名称不对,找不到这个gazebo名字啊
熟悉ros的朋友这会估计已经可以自己解决了,跳过c)也能自己正常做到了
好的,我们根据这个,找到我们前面打开的empty_worlds.launch这个文件
发现其中尾部有一句关键句为:
<node name="gazebo" pkg="gazebo_ros" type="$(arg script_type)" respawn="false" output="screen" args="$(arg command_arg1) $(arg command_arg2) $(arg command_arg3) -e $(arg physics) $(arg extra_gazebo_args) $(arg world_name)" />我们可以看到,pkg=“gazebo_ros”
而table.launch文件对应的为:
<node name="spawn_table" pkg="gazebo" type="spawn_model" args="-urdf -param table_description -z 0.01 -model table_model" respawn="false" output="screen" />发现不同,原来这里pkg="gazebo"
c)将pkg改正过来
我们再次编辑table.launch文件,将这段代码:
<node name="spawn_table" pkg="gazebo" type="spawn_model" args="-urdf -param table_description -z 0.01 -model table_model" respawn="false" output="screen" />替换为:
<node name="spawn_table" pkg="gazebo_ros" type="spawn_model" args="-urdf -param table_description -z 0.01 -model table_model" respawn="false" output="screen" />
然后保存关闭。
那么ros indigo 版本下,正确的table.launch文件代码全文如下:
<launch> <!-- send table urdf to param server --> <param name="table_description" command="$(find xacro)/xacro.py $(find gazebo_ros)/objects/table.urdf.xacro" /> <!-- push table_description to factory and spawn robot in gazebo --> <node name="spawn_table" pkg="gazebo_ros" type="spawn_model" args="-urdf -param table_description -z 0.01 -model table_model" respawn="false" output="screen" /> </launch>
终端中运行正确的launch文件
roslaunch gazebo_ros table.launch
你会发现没有报错,如果这个时候还报错,你就从头看一下,是否是哪个步骤没做好?

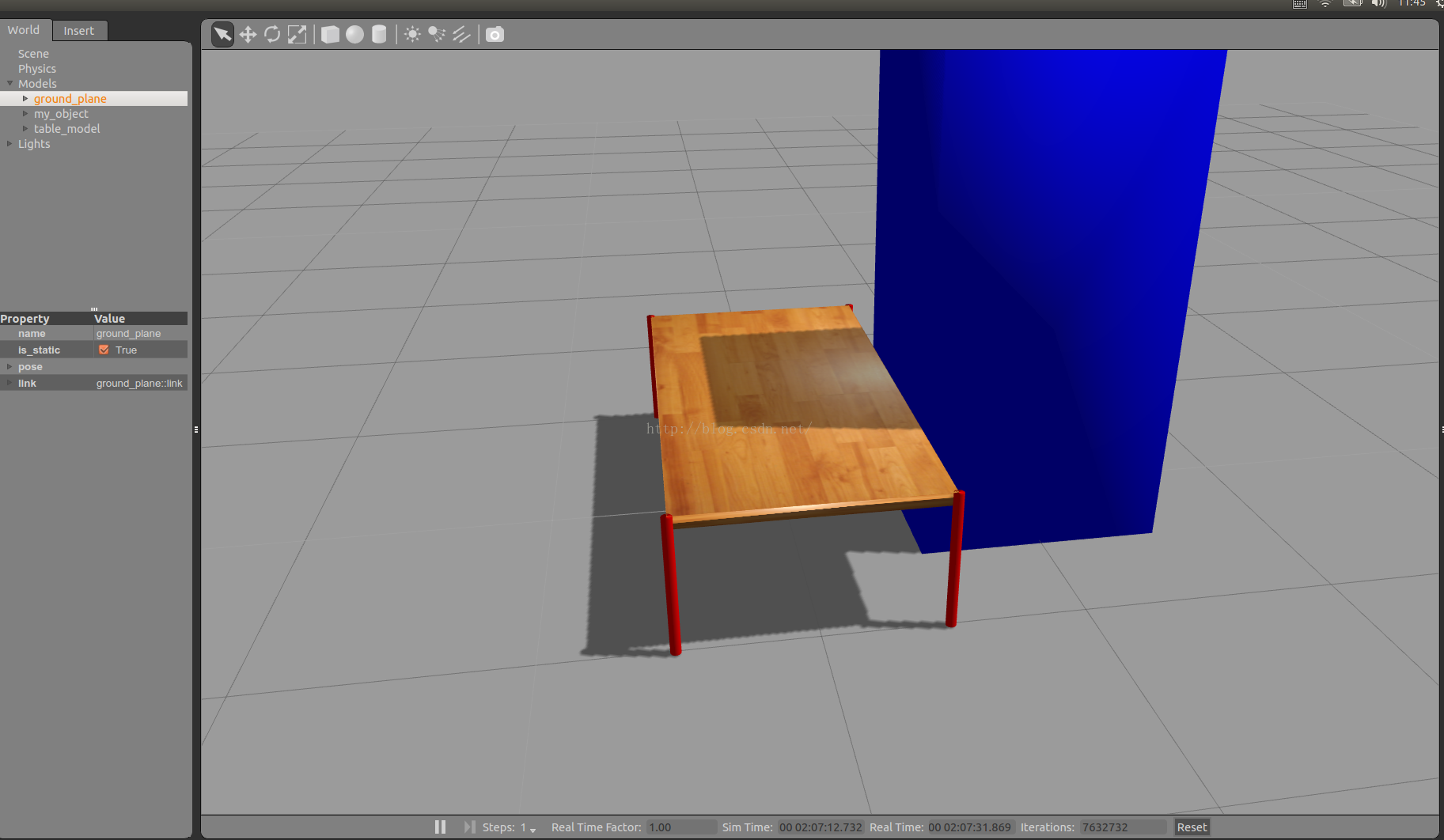

然后你会看到你的gazebo模拟器中,出现了如图所示的一张桌子:
恭喜你,你已经学会了如何通过roslaunch命令导入相关的模型了。
5)使用launch文件导入多个模型
为了方便,我们把这两个物体写到一个launch文件中,一次性运行可以导入两个;
首先,把最开始写的object.urdf复制到/opt/ros/indigo/share/gazebo_ros/objects路径下,然后到launch文件夹下建立all.launch文件
sudo gedit all.launch
将以下代码复制:
<launch> <!-- send table urdf to param server --> <param name="table_description" command="$(find xacro)/xacro.py $(find gazebo_ros)/objects/table.urdf.xacro" /> <param name="box_description" textfile="$(find gazebo_ros)/objects/object.urdf" /> <!-- push table_description to factory and spawn robot in gazebo --> <node name="spawn_table" pkg="gazebo_ros" type="spawn_model" args="-urdf -param table_description -z 0.01 -model table_model" respawn="false" output="screen" /> <node name="spawn_box" pkg="gazebo_ros" type="spawn_model" args="-urdf -param box_description -z 0.01 -model box_model" respawn="false" output="screen" /> </launch>保存并关闭
运行all.launch文件
roslaunch gazebo_ros all.launch你就会看到你的两个物体先后生成到模拟器中,但要注意,如果你的模拟器中已经存在了这两个物体,那么不会重新添加,因为节点信息已经存在了。
(×)有一个问题,我自己也没法解决?
这个问题我自己尝试解决,试了很多也没有找到解决方法,希望有人可以指点一下我。
问题描述:
官方文档中最后有一步是添加一杯咖啡,但我失败了!
我在官方模型库中发现模型文件的类型除了urdf外,还有一个model类型,但这种类型我没法通过roslaunch进行添加,我在官方源里找到对应的的roslaunch文件,发现并没有办法运行,错误提示为:gazebo这种类型不适用。
不明所以,希望有才者可以解我疑惑。
