[Android学习]Fragment粗浅入门
2016-06-15 15:48
411 查看
在之前的学习中并没有仔细的看Fragment这个东东,昨天想用的时候上网找,发现很多都没给全,不过最后搞出来了才发现郭神和鸿洋大神的博客都有详细的说明,本着做笔记原则,还是来写写 吧。
鸿洋: Android Fragment 真正的完全解析
郭霖:Android Fragment完全解析,关于碎片你所需知道的一切
我用的是V4的包,先来说说要注意的点。
1、MainActivity extends FragmentActivity 主函数要求继承 FragmentActivity 否则会报错
2、新建的Fragment子类如果要继承ListFragment的话,里边的ListView的id只能为“@android:id/list”
3、V4的获取Manager是 getSupportFragmentManager() 跟App包的不一样 App包是getFragmentManager()
定义了3个Fragment,左中右,左边用的静态添加(即在布局文件中就设置好),中间用的是动态添加,在MainActivity 中用Fragment Manager 开启事务来替换。左边中间是List Fragment。右边就是个普通的Fragment。
左边的布局文件,注意看我ListView的名字,SO上边说V4的只能用这个名字,我昨天也是实践过发现改成这样才可以。
LeftFragment类,重写onListItemClick,当点击内部ListView的Item时会修改RightFragment中的TextView的文本显示,下同。
中间的
MidFragment类
RightFragment布局文件:
RightFragment类,继承Fragment
主函数的布局文件,在3个Fragment上边添加一个按钮,按钮的时间看主函数可以知道是用来点击,添加中间Fragment的。
主MainActivity ,在Button的点击事件中把主MainActivity 布局中的FrameLayout替换为 midFragment 对应的布局文件。
运行效果图:
点一下最上边的Button
点击LeftFragment里的ListView的Item,RightFragment里的内容会改变
点击MidFragment也是一样
源码 更新了,这CSDN总删我资源。。
源代码
昨天弄ListFragment的时候一直报错,我就在想能不能直接继承Fragment,然后实现一下OnItemClick的这个接口。不过也没弄出来,有兴趣的同学的可以去试试,想真正的理解Fragment的还是去看看郭神和鸿洋大神的博客吧,写的好详细了,好啦,就这样了。如果哪里说错了欢迎指正。
鸿洋: Android Fragment 真正的完全解析
郭霖:Android Fragment完全解析,关于碎片你所需知道的一切
我用的是V4的包,先来说说要注意的点。
1、MainActivity extends FragmentActivity 主函数要求继承 FragmentActivity 否则会报错
2、新建的Fragment子类如果要继承ListFragment的话,里边的ListView的id只能为“@android:id/list”
3、V4的获取Manager是 getSupportFragmentManager() 跟App包的不一样 App包是getFragmentManager()
定义了3个Fragment,左中右,左边用的静态添加(即在布局文件中就设置好),中间用的是动态添加,在MainActivity 中用Fragment Manager 开启事务来替换。左边中间是List Fragment。右边就是个普通的Fragment。
左边的布局文件,注意看我ListView的名字,SO上边说V4的只能用这个名字,我昨天也是实践过发现改成这样才可以。
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@android:color/holo_orange_dark" android:orientation="vertical" > <ListView android:id="@id/android:list" android:layout_width="wrap_content" android:layout_height="wrap_content"> </ListView> </LinearLayout>
LeftFragment类,重写onListItemClick,当点击内部ListView的Item时会修改RightFragment中的TextView的文本显示,下同。
package com.dongua.fragmenttest; import android.os.Bundle; import android 4000 .util.Log; import android.view.LayoutInflater; import android.view.View; import android.view.ViewGroup; import android.widget.ArrayAdapter; import android.widget.ListView; public class LeftFragment extends android.support.v4.app.ListFragment { private static final String[] strs = new String[] { "first", "second", "third", "fourth", "fifth"}; @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { System.out.println("LeftFragment onCreateView"); View view = inflater.inflate(R.layout.leftfragment, container, true); ArrayAdapter mAdapter = new ArrayAdapter<String>(getActivity(), android.R.layout.simple_list_item_1, strs); setListAdapter(mAdapter); return view; } @Override public void onListItemClick(ListView l, View v, int position, long id) { Log.i("debuginfo","第一个Fragment:"+ position); RightFragment frag = (RightFragment) getFragmentManager() .findFragmentById(R.id.right_fragment); frag.setTextView("第一个Fragment:"+ position); } }
中间的
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@android:color/holo_red_light" android:orientation="vertical" > <ListView android:id="@id/android:list" android:layout_width="wrap_content" android:layout_height="wrap_content"> </ListView> </LinearLayout>
MidFragment类
package com.dongua.fragmenttest; import android.os.Bundle; import android.util.Log; import android.view.LayoutInflater; import android.view.View; import android.view.ViewGroup; import android.widget.ArrayAdapter; import android.widget.ListView; public class MidFragment extends android.support.v4.app.ListFragment { private String[] values = new String[] { "Item1", "Item2", "Item3", "Item4", "Item5"}; @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { View view = inflater.inflate(R.layout.midfragment, container, false); ArrayAdapter<String> mAdapter = (new ArrayAdapter<String>(getActivity(), android.R.layout.simple_list_item_1, values)); setListAdapter(mAdapter); return view; } @Override public void onListItemClick(ListView l, View v, int position, long id) { Log.i("debuginfo","第二个Fragment:"+ position); RightFragment frag = (RightFragment) getFragmentManager() .findFragmentById(R.id.right_fragment); frag.setTextView("第二个Fragment:"+ position); } }
RightFragment布局文件:
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" > <TextView android:id="@+id/textview" android:layout_width="fill_parent" android:layout_height="fill_parent" android:background="@android:color/holo_blue_dark" android:text=" show_message" android:textSize="50dp"/> </LinearLayout>
RightFragment类,继承Fragment
package com.dongua.fragmenttest; import android.os.Bundle; import android.view.LayoutInflater; import android.view.View; import android.view.ViewGroup; import android.widget.TextView; public class RightFragment extends android.support.v4.app.Fragment { TextView textView ; @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { System.out.println("RightFragment onCreateView"); return inflater.inflate(R.layout.rightfragment, container, true); } public void setTextView(String str){ textView = (TextView)getActivity().findViewById(R.id.textview); textView.setText(str); } }
主函数的布局文件,在3个Fragment上边添加一个按钮,按钮的时间看主函数可以知道是用来点击,添加中间Fragment的。
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="fill_parent" android:layout_height="fill_parent" tools:context="com.dongua.fragmenttest.MainActivity"> <Button android:layout_width="match_parent" android:layout_height="wrap_content" android:id="@+id/mybtn" android:text="程序手动往ListFragment添加ListView"/> <LinearLayout android:layout_below="@+id/mybtn" android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="horizontal"> <fragment android:id="@+id/left_fragment" android:name="com.dongua.fragmenttest.LeftFragment" android:layout_width="match_parent" android:layout_height="fill_parent" android:layout_weight="1" /> <FrameLayout android:id="@+id/framelayout" android:layout_width="match_parent" android:layout_height="fill_parent" android:layout_weight="1"> </FrameLayout> <fragment android:id="@+id/right_fragment" android:name="com.dongua.fragmenttest.RightFragment" android:layout_width="match_parent" android:layout_height="fill_parent" android:layout_weight="1" /> </LinearLayout> </RelativeLayout>
主MainActivity ,在Button的点击事件中把主MainActivity 布局中的FrameLayout替换为 midFragment 对应的布局文件。
package com.dongua.fragmenttest; import android.os.Bundle; import android.support.v4.app.FragmentActivity; import android.support.v4.app.FragmentManager; import android.view.View; import android.widget.Button; /** * Created by dongua on 2016/6/14. */ public class MainActivity extends FragmentActivity { private Button mybtn; @Override protected void onCreate( Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); mybtn = (Button)findViewById(R.id.mybtn); mybtn.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { MidFragment midFragment = new MidFragment(); FragmentManager fragmentManager = getSupportFragmentManager(); fragmentManager.beginTransaction().replace(R.id.framelayout,midFragment).commit(); } }); } }

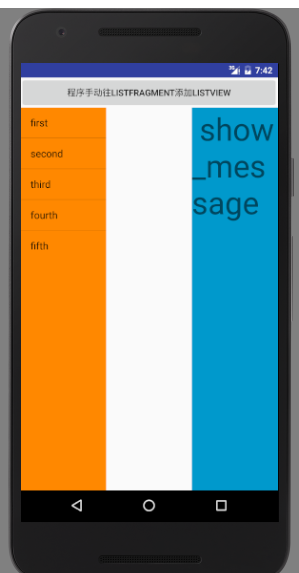

运行效果图:

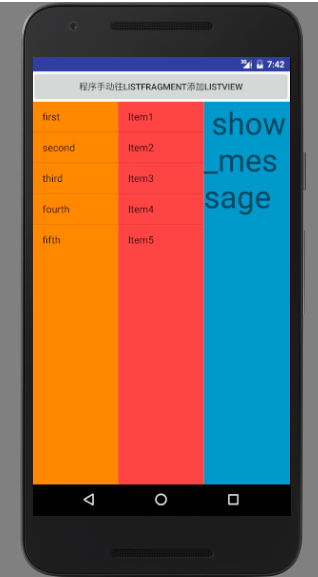

点一下最上边的Button

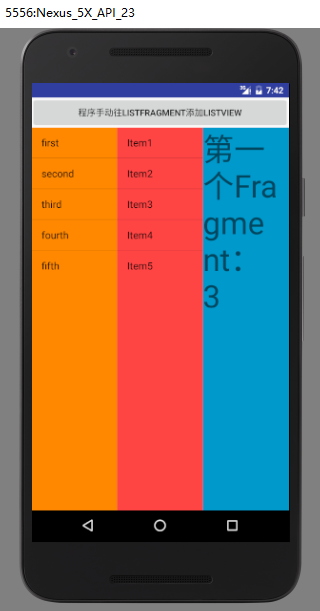

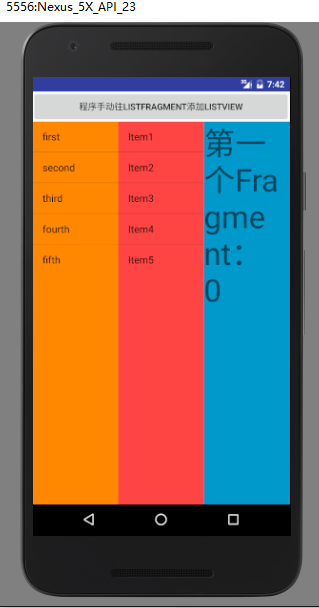

点击LeftFragment里的ListView的Item,RightFragment里的内容会改变
点击MidFragment也是一样
源码 更新了,这CSDN总删我资源。。
源代码
昨天弄ListFragment的时候一直报错,我就在想能不能直接继承Fragment,然后实现一下OnItemClick的这个接口。不过也没弄出来,有兴趣的同学的可以去试试,想真正的理解Fragment的还是去看看郭神和鸿洋大神的博客吧,写的好详细了,好啦,就这样了。如果哪里说错了欢迎指正。
