C#界面设计之图像去雾算法
2016-04-06 13:00
435 查看

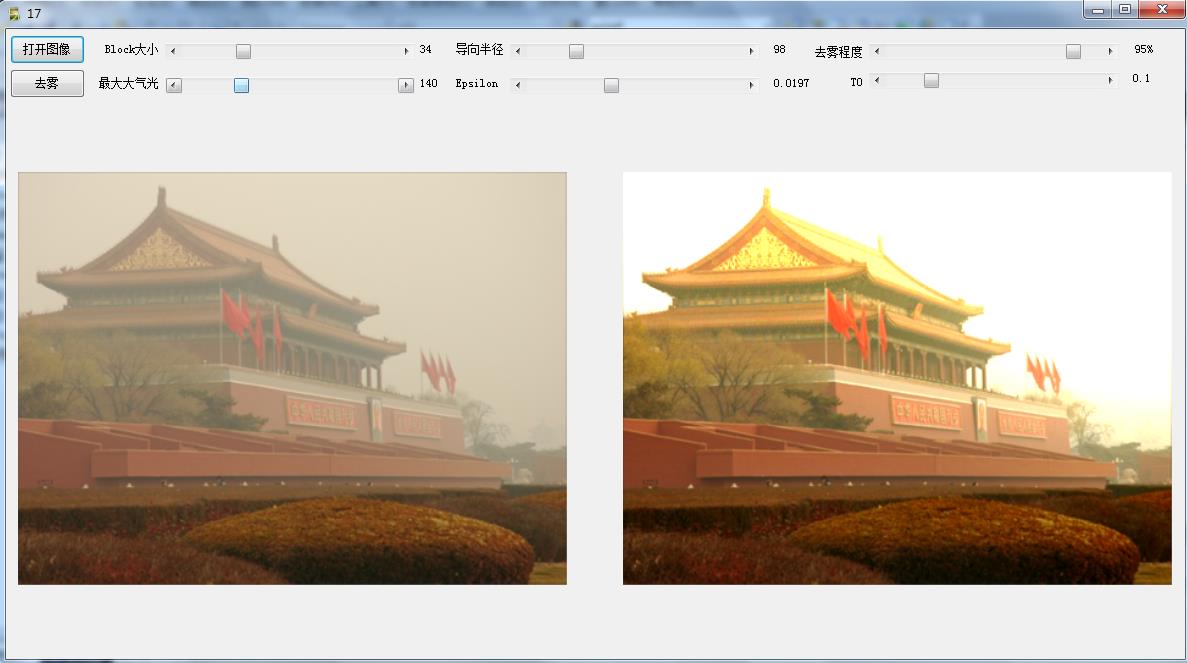

采用何凯明的经典暗通道图像去雾算法,核心代码以编译成DLL链接库,还是先上结果啦!GO!
![](https://img-blog.csdn.net/20160406125827932)
代码如下:
代码如下:
using System; using System.Collections.Generic; using System.ComponentModel; using System.Data; using System.Drawing; using System.Drawing.Imaging; using System.Linq; using System.Text; using System.Windows.Forms; using System.Runtime.InteropServices; using System.Diagnostics; namespace HazeRemovalTest { public unsafe partial class FrmTest : Form { // dll的代码中用的是StdCall,这里也要用StdCall,如果用Cdecl,则会出现对 PInvoke 函数“....”的调用导致堆栈不对称错误,再次按F5又可以运行 [DllImport("HazeRemoval.dll", CallingConvention = CallingConvention.StdCall, CharSet = CharSet.Unicode, ExactSpelling = true)] private static extern void HazeRemovalUseDarkChannelPrior(byte* Src, byte* Dest, int Width, int Height, int Stride, int Radius,int GuideRadius, int MaxAtom, float Omega, float Epsilon, float T0); private bool Busy = false; public FrmTest() { InitializeComponent(); } private void CmdOpen_Click(object sender, EventArgs e) { OpenFileDialog openFileDialog = new OpenFileDialog(); openFileDialog.RestoreDirectory = true; if (openFileDialog.ShowDialog() == DialogResult.OK) { PicSrc.Image.Dispose(); PicDest.Image.Dispose(); PicSrc.Image = Bitmap.FromFile(openFileDialog.FileName); PicDest.Image = Bitmap.FromFile(openFileDialog.FileName); Application.DoEvents(); ShowHazeRemovalResult(); } } private void CmdHazeRemoval_Click(object sender, EventArgs e) { ShowHazeRemovalResult(); } private void ShowHazeRemovalResult() { Busy = true; Bitmap SrcB = (Bitmap)PicSrc.Image; Bitmap DstB = (Bitmap)PicDest.Image; BitmapData SrcBmpData = SrcB.LockBits(new Rectangle(0, 0, SrcB.Width, SrcB.Height), ImageLockMode.ReadWrite, PixelFormat.Format24bppRgb); BitmapData DstBmpData = DstB.LockBits(new Rectangle(0, 0, DstB.Width, DstB.Height), ImageLockMode.ReadWrite, PixelFormat.Format24bppRgb); Stopwatch Sw = new Stopwatch(); Sw.Start(); HazeRemovalUseDarkChannelPrior((byte*)SrcBmpData.Scan0, (byte*)DstBmpData.Scan0, SrcBmpData.Width, SrcBmpData.Height, SrcBmpData.Stride, BlockSize.Value, GuideBlockSize.Value, MaxAtom.Value, Omega.Value * 0.01f, Epsilon.Value * 0.001f, T0.Value * 0.01f); Sw.Stop(); this.Text = Sw.ElapsedMilliseconds.ToString(); SrcB.UnlockBits(SrcBmpData); DstB.UnlockBits(DstBmpData); PicDest.Invalidate(); Busy = false; } private void FrmTest_Load(object sender, EventArgs e) { ShowHazeRemovalResult(); } private void BlockSize_Scroll(object sender, ScrollEventArgs e) { LblBlockSize.Text = BlockSize.Value.ToString(); if (Busy==false) ShowHazeRemovalResult(); } private void GuideBlockSize_Scroll(object sender, ScrollEventArgs e) { LblGuideBlockSize.Text = GuideBlockSize.Value.ToString(); if (Busy == false) ShowHazeRemovalResult(); } private void Omega_Scroll(object sender, ScrollEventArgs e) { LblOmega.Text = Omega.Value.ToString() + "%"; if (Busy == false) ShowHazeRemovalResult(); } private void MaxAtom_Scroll(object sender, ScrollEventArgs e) { LbLAtom.Text = MaxAtom.Value.ToString(); if (Busy == false) ShowHazeRemovalResult(); } private void Epsilon_Scroll(object sender, ScrollEventArgs e) { LblEpsilon.Text = (Epsilon.Value * 0.0001).ToString(); if (Busy == false) ShowHazeRemovalResult(); } private void T0_Scroll(object sender, ScrollEventArgs e) { LblT0.Text = (T0.Value * 0.01).ToString(); if (Busy == false) ShowHazeRemovalResult(); } } }
using System; using System.Collections.Generic; using System.Linq; using System.Windows.Forms; namespace HazeRemovalTest { static class Program { /// <summary> /// 应用程序的主入口点。 /// </summary> [STAThread] static void Main() { Application.EnableVisualStyles(); Application.SetCompatibleTextRenderingDefault(false); Application.Run(new FrmTest()); } } }
namespace HazeRemovalTest { unsafe partial class FrmTest { /// <summary> /// 必需的设计器变量。 /// </summary> private System.ComponentModel.IContainer components = null; /// <summary> /// 清理所有正在使用的资源。 /// </summary> /// <param name="disposing">如果应释放托管资源,为 true;否则为 false。</param> protected override void Dispose(bool disposing) { if (disposing && (components != null)) { components.Dispose(); } base.Dispose(disposing); } #region Windows 窗体设计器生成的代码 /// <summary> /// 设计器支持所需的方法 - 不要 /// 使用代码编辑器修改此方法的内容。 /// </summary> private void InitializeComponent() { System.ComponentModel.ComponentResourceManager resources = new System.ComponentModel.ComponentResourceManager(typeof(FrmTest)); this.LblGuideBlockSize = new System.Windows.Forms.Label(); this.导向半径 = new System.Windows.Forms.Label(); this.GuideBlockSize = new System.Windows.Forms.HScrollBar(); this.LbLAtom = new System.Windows.Forms.Label(); this.label3 = new System.Windows.Forms.Label(); this.MaxAtom = new System.Windows.Forms.HScrollBar(); this.LblBlockSize = new System.Windows.Forms.Label(); this.label1 = new System.Windows.Forms.Label(); this.BlockSize = new System.Windows.Forms.HScrollBar(); this.CmdHazeRemoval = new System.Windows.Forms.Button(); this.CmdOpen = new System.Windows.Forms.Button(); this.PicSrc = new System.Windows.Forms.PictureBox(); this.PicDest = new System.Windows.Forms.PictureBox(); this.LblOmega = new System.Windows.Forms.Label(); this.label5 = new System.Windows.Forms.Label(); this.Omega = new System.Windows.Forms.HScrollBar(); this.LblEpsilon = new System.Windows.Forms.Label(); this.label6 = new System.Windows.Forms.Label(); this.Epsilon = new System.Windows.Forms.HScrollBar(); this.LblT0 = new System.Windows.Forms.Label(); this.label8 = new System.Windows.Forms.Label(); this.T0 = new System.Windows.Forms.HScrollBar(); ((System.ComponentModel.ISupportInitialize)(this.PicSrc)).BeginInit(); ((System.ComponentModel.ISupportInitialize)(this.PicDest)).BeginInit(); this.SuspendLayout(); // // LblGuideBlockSize // this.LblGuideBlockSize.AutoSize = true; this.LblGuideBlockSize.Location = new System.Drawing.Point(766, 14); this.LblGuideBlockSize.Name = "LblGuideBlockSize"; this.LblGuideBlockSize.Size = new System.Drawing.Size(17, 12); this.LblGuideBlockSize.TabIndex = 32; this.LblGuideBlockSize.Text = "50"; // // 导向半径 // this.导向半径.AutoSize = true; this.导向半径.Location = new System.Drawing.Point(448, 14); this.导向半径.Name = "导向半径"; this.导向半径.Size = new System.Drawing.Size(53, 12); this.导向半径.TabIndex = 31; this.导向半径.Text = "导向半径"; // // GuideBlockSize // this.GuideBlockSize.LargeChange = 1; this.GuideBlockSize.Location = new System.Drawing.Point(504, 14); this.GuideBlockSize.Maximum = 400; this.GuideBlockSize.Minimum = 20; this.GuideBlockSize.Name = "GuideBlockSize"; this.GuideBlockSize.Size = new System.Drawing.Size(250, 17); this.GuideBlockSize.TabIndex = 30; this.GuideBlockSize.Value = 50; this.GuideBlockSize.Scroll += new System.Windows.Forms.ScrollEventHandler(this.GuideBlockSize_Scroll); // // LbLAtom // this.LbLAtom.AutoSize = true; this.LbLAtom.Location = new System.Drawing.Point(412, 48); this.LbLAtom.Name = "LbLAtom"; this.LbLAtom.Size = new System.Drawing.Size(23, 12); this.LbLAtom.TabIndex = 29; this.LbLAtom.Text = "220"; // // label3 // this.label3.AutoSize = true; this.label3.Location = new System.Drawing.Point(91, 48); this.label3.Name = "label3"; this.label3.Size = new System.Drawing.Size(65, 12); this.label3.TabIndex = 28; this.label3.Text = "最大大气光"; // // MaxAtom // this.MaxAtom.LargeChange = 1; this.MaxAtom.Location = new System.Drawing.Point(159, 48); this.MaxAtom.Maximum = 255; this.MaxAtom.Minimum = 100; this.MaxAtom.Name = "MaxAtom"; this.MaxAtom.Size = new System.Drawing.Size(250, 17); this.MaxAtom.TabIndex = 27; this.MaxAtom.Value = 220; this.MaxAtom.Scroll += new System.Windows.Forms.ScrollEventHandler(this.MaxAtom_Scroll); // // LblBlockSize // this.LblBlockSize.AutoSize = true; this.LblBlockSize.Location = new System.Drawing.Point(412, 14); this.LblBlockSize.Name = "LblBlockSize"; this.LblBlockSize.Size = new System.Drawing.Size(17, 12); this.LblBlockSize.TabIndex = 26; this.LblBlockSize.Text = "15"; // // label1 // this.label1.AutoSize = true; this.label1.Location = new System.Drawing.Point(97, 14); this.label1.Name = "label1"; this.label1.Size = new System.Drawing.Size(59, 12); this.label1.TabIndex = 25; this.label1.Text = "Block大小"; // // BlockSize // this.BlockSize.LargeChange = 1; this.BlockSize.Location = new System.Drawing.Point(159, 14); this.BlockSize.Minimum = 10; this.BlockSize.Name = "BlockSize"; this.BlockSize.Size = new System.Drawing.Size(250, 17); this.BlockSize.TabIndex = 24; this.BlockSize.Value = 15; this.BlockSize.Scroll += new System.Windows.Forms.ScrollEventHandler(this.BlockSize_Scroll); // // CmdHazeRemoval // this.CmdHazeRemoval.Location = new System.Drawing.Point(4, 40); this.CmdHazeRemoval.Name = "CmdHazeRemoval"; this.CmdHazeRemoval.Size = new System.Drawing.Size(75, 29); this.CmdHazeRemoval.TabIndex = 22; this.CmdHazeRemoval.Text = "去雾"; this.CmdHazeRemoval.UseVisualStyleBackColor = true; this.CmdHazeRemoval.Click += new System.EventHandler(this.CmdHazeRemoval_Click); // // CmdOpen // this.CmdOpen.Location = new System.Drawing.Point(4, 6); this.CmdOpen.Name = "CmdOpen"; this.CmdOpen.Size = new System.Drawing.Size(75, 29); this.CmdOpen.TabIndex = 21; this.CmdOpen.Text = "打开图像"; this.CmdOpen.UseVisualStyleBackColor = true; this.CmdOpen.Click += new System.EventHandler(this.CmdOpen_Click); // // PicSrc // this.PicSrc.Image = global::HazeRemovalTest.Properties.Resources._75; this.PicSrc.Location = new System.Drawing.Point(12, 75); this.PicSrc.Name = "PicSrc"; this.PicSrc.Size = new System.Drawing.Size(550, 550); this.PicSrc.SizeMode = System.Windows.Forms.PictureBoxSizeMode.Zoom; this.PicSrc.TabIndex = 33; this.PicSrc.TabStop = false; // // PicDest // this.PicDest.Image = global::HazeRemovalTest.Properties.Resources._75; this.PicDest.Location = new System.Drawing.Point(617, 75); this.PicDest.Name = "PicDest"; this.PicDest.Size = new System.Drawing.Size(550, 550); this.PicDest.SizeMode = System.Windows.Forms.PictureBoxSizeMode.Zoom; this.PicDest.TabIndex = 34; this.PicDest.TabStop = false; // // LblOmega // this.LblOmega.AutoSize = true; this.LblOmega.Location = new System.Drawing.Point(1127, 14); this.LblOmega.Name = "LblOmega"; this.LblOmega.Size = new System.Drawing.Size(23, 12); this.LblOmega.TabIndex = 37; this.LblOmega.Text = "95%"; // // label5 // this.label5.AutoSize = true; this.label5.Location = new System.Drawing.Point(807, 17); this.label5.Name = "label5"; this.label5.Size = new System.Drawing.Size(53, 12); this.label5.TabIndex = 36; this.label5.Text = "去雾程度"; // // Omega // this.Omega.LargeChange = 1; this.Omega.Location = new System.Drawing.Point(863, 14); this.Omega.Minimum = 50; this.Omega.Name = "Omega"; this.Omega.Size = new System.Drawing.Size(250, 17); this.Omega.TabIndex = 35; this.Omega.Value = 95; this.Omega.Scroll += new System.Windows.Forms.ScrollEventHandler(this.Omega_Scroll); // // LblEpsilon // this.LblEpsilon.AutoSize = true; this.LblEpsilon.Location = new System.Drawing.Point(766, 48); this.LblEpsilon.Name = "LblEpsilon"; this.LblEpsilon.Size = new System.Drawing.Size(29, 12); this.LblEpsilon.TabIndex = 40; this.LblEpsilon.Text = "0.01"; // // label6 // this.label6.AutoSize = true; this.label6.Location = new System.Drawing.Point(448, 48); this.label6.Name = "label6"; this.label6.Size = new System.Drawing.Size(47, 12); this.label6.TabIndex = 39; this.label6.Text = "Epsilon"; // // Epsilon // this.Epsilon.LargeChange = 1; this.Epsilon.Location = new System.Drawing.Point(504, 48); this.Epsilon.Maximum = 500; this.Epsilon.Minimum = 10; this.Epsilon.Name = "Epsilon"; this.Epsilon.Size = new System.Drawing.Size(250, 17); this.Epsilon.TabIndex = 38; this.Epsilon.Value = 10; this.Epsilon.Scroll += new System.Windows.Forms.ScrollEventHandler(this.Epsilon_Scroll); // // LblT0 // this.LblT0.AutoSize = true; this.LblT0.Location = new System.Drawing.Point(1125, 43); this.LblT0.Name = "LblT0"; this.LblT0.Size = new System.Drawing.Size(23, 12); this.LblT0.TabIndex = 43; this.LblT0.Text = "0.1"; // // label8 // this.label8.AutoSize = true; this.label8.Location = new System.Drawing.Point(843, 47); this.label8.Name = "label8"; this.label8.Size = new System.Drawing.Size(17, 12); this.label8.TabIndex = 42; this.label8.Text = "T0"; // // T0 // this.T0.LargeChange = 1; this.T0.Location = new System.Drawing.Point(863, 43); this.T0.Maximum = 50; this.T0.Minimum = 1; this.T0.Name = "T0"; this.T0.Size = new System.Drawing.Size(250, 17); this.T0.TabIndex = 41; this.T0.Value = 10; this.T0.Scroll += new System.Windows.Forms.ScrollEventHandler(this.T0_Scroll); // // FrmTest // this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 12F); this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font; this.ClientSize = new System.Drawing.Size(1179, 630); this.Controls.Add(this.LblT0); this.Controls.Add(this.label8); this.Controls.Add(this.T0); this.Controls.Add(this.LblEpsilon); this.Controls.Add(this.label6); this.Controls.Add(this.Epsilon); this.Controls.Add(this.LblOmega); this.Controls.Add(this.label5); this.Controls.Add(this.Omega); this.Controls.Add(this.PicDest); this.Controls.Add(this.PicSrc); this.Controls.Add(this.LblGuideBlockSize); this.Controls.Add(this.导向半径); this.Controls.Add(this.GuideBlockSize); this.Controls.Add(this.LbLAtom); this.Controls.Add(this.label3); this.Controls.Add(this.MaxAtom); this.Controls.Add(this.LblBlockSize); this.Controls.Add(this.label1); this.Controls.Add(this.BlockSize); this.Controls.Add(this.CmdHazeRemoval); this.Controls.Add(this.CmdOpen); this.Icon = ((System.Drawing.Icon)(resources.GetObject("$this.Icon"))); this.Name = "FrmTest"; this.StartPosition = System.Windows.Forms.FormStartPosition.CenterScreen; this.Text = "图像去雾"; this.Load += new System.EventHandler(this.FrmTest_Load); ((System.ComponentModel.ISupportInitialize)(this.PicSrc)).EndInit(); ((System.ComponentModel.ISupportInitialize)(this.PicDest)).EndInit(); this.ResumeLayout(false); this.PerformLayout(); } #endregion private System.Windows.Forms.Label LblGuideBlockSize; private System.Windows.Forms.Label 导向半径; private System.Windows.Forms.HScrollBar GuideBlockSize; private System.Windows.Forms.Label LbLAtom; private System.Windows.Forms.Label label3; private System.Windows.Forms.HScrollBar MaxAtom; private System.Windows.Forms.Label LblBlockSize; private System.Windows.Forms.Label label1; private System.Windows.Forms.HScrollBar BlockSize; private System.Windows.Forms.Button CmdHazeRemoval; private System.Windows.Forms.Button CmdOpen; private System.Windows.Forms.PictureBox PicSrc; private System.Windows.Forms.PictureBox PicDest; private System.Windows.Forms.Label LblOmega; private System.Windows.Forms.Label label5; private System.Windows.Forms.HScrollBar Omega; private System.Windows.Forms.Label LblEpsilon; private System.Windows.Forms.Label label6; private System.Windows.Forms.HScrollBar Epsilon; private System.Windows.Forms.Label LblT0; private System.Windows.Forms.Label label8; private System.Windows.Forms.HScrollBar T0; } }
