简易sniffer演示程序
2015-10-07 09:20
531 查看
这是网络攻防课的一次实验,完成之后简单整理一下发布到博客中。
实验内容:
开发出一个任意平台上的Sniffer(嗅探器)工具,能显示所捕获的局域网数据包并能做相应的分析和统计。主要内容如下:
列出监测主机的所有网卡,选择一个网卡,设置为混杂模式(网卡能够接收所有经过它的数据流,而不论其目的地址是否是它。)
进行监听。捕获所有流经网卡的数据包,并利用WinPcap函数库设置过滤规则。分
析捕获到的数据包的包头和数据,按照各种协议的格式进行格式化显示。
实验环境:
开发平台:Window 7 ~32bit
开发环境:Microsoft Visual Studio 2012
开发语言:C#
库环境:WinPcapV4.1.3、SharpPcap V4.2.0
dell文件下载地址:http://pan.baidu.com/s/1pJG4Iwj
实验设计:
本实验的目标主要是利用WinPcap开发包工具,独立开发出一个网络嗅探器。
分析整个嗅探器工作流程,首先需要获取本地网络适配器借口列表,然后需要选择适配器接口并打开,开启监听并根据过滤规则开始捕获数据包。捕获到的数据包需要实时显示在窗体控件中,并进行必要的统计。

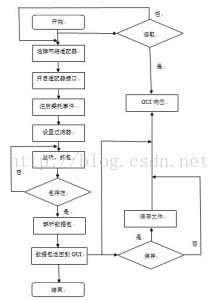

程序流程图如下:

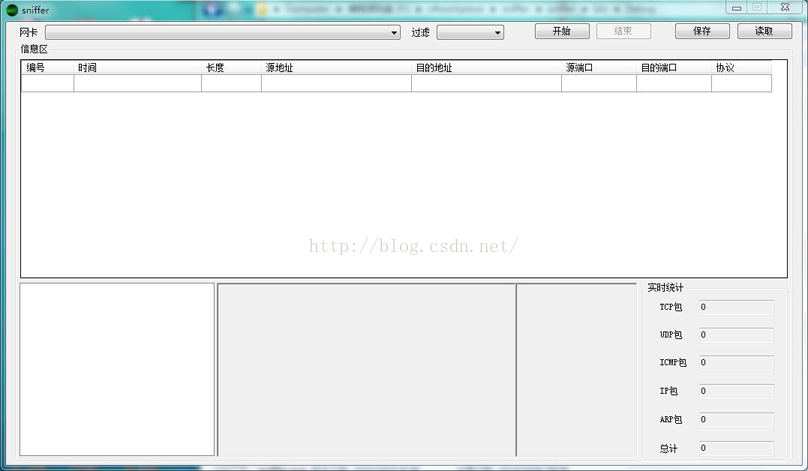

效果图如下:
主要功能代码实现:
点击打开链接
实验内容:
开发出一个任意平台上的Sniffer(嗅探器)工具,能显示所捕获的局域网数据包并能做相应的分析和统计。主要内容如下:
列出监测主机的所有网卡,选择一个网卡,设置为混杂模式(网卡能够接收所有经过它的数据流,而不论其目的地址是否是它。)
进行监听。捕获所有流经网卡的数据包,并利用WinPcap函数库设置过滤规则。分
析捕获到的数据包的包头和数据,按照各种协议的格式进行格式化显示。
实验环境:
开发平台:Window 7 ~32bit
开发环境:Microsoft Visual Studio 2012
开发语言:C#
库环境:WinPcapV4.1.3、SharpPcap V4.2.0
dell文件下载地址:http://pan.baidu.com/s/1pJG4Iwj
实验设计:
本实验的目标主要是利用WinPcap开发包工具,独立开发出一个网络嗅探器。
分析整个嗅探器工作流程,首先需要获取本地网络适配器借口列表,然后需要选择适配器接口并打开,开启监听并根据过滤规则开始捕获数据包。捕获到的数据包需要实时显示在窗体控件中,并进行必要的统计。
程序流程图如下:
效果图如下:
主要功能代码实现:
using System; using System.Collections.Generic; using System.ComponentModel; using System.Data; using System.Drawing; using System.Linq; using System.Text; using System.Windows.Forms; using System.IO; using Tamir.IPLib; using Tamir.IPLib.Packets; using Tamir.IPLib.Protocols; using System.Collections; namespace sniffer { public partial class sniffer : Form { PcapDeviceList devices ; PcapDevice device ; PcapDevice device1; Packet pac; int index=1; int ipnum = 0; int icmpnum = 0; int tcpnum = 0; int udpnum = 0; int arpnum = 0; int sum = 0; private delegate void ControlDelegate(Packet packet); public struct Info { public int index1; public DateTime time1; public int len1; public int hwtype1; public int protocoltype1; public int hwaddresslength1; public int operation1; public string srcIp1; public string dstIp1; public string srchwaddress1; public string dsthwaddress1; public int srcPort1; public int dstPort1; public string pr1; public int version1; public int ipheaderlength1; public int sevicetype1; public int totallength1; public int flag1; public int fragflag1; public int livetime1; public int protocol1; public int checksum1; public long sequencenum1; public int code1; public byte[] data1; } List<Info> array = new List<Info>(); public sniffer()//初始化 { InitializeComponent(); btnstop.Enabled = false; } private void btnstart_Click(object sender, EventArgs e)//开始按钮响应事件 { btnstop.Enabled = true; btnstart.Enabled = false; if (cmb_netcard.Text == "") { MessageBox.Show("请选择网卡"); btnstart.Enabled = true; btnstop.Enabled = false; } else { //打开所选网卡接口进行监听 device = devices[cmb_netcard.Items.IndexOf(cmb_netcard.Text)]; device1 = devices[cmb_netcard.Items.IndexOf(cmb_netcard.Text)]; int readTimeoutMilliseconds = 1000; device.PcapOpen(true, readTimeoutMilliseconds); device1.PcapOpen(true, readTimeoutMilliseconds); if (cmb_fliter.Text.ToString() == "tcp" || cmb_fliter.Text.ToString() == "udp" || cmb_fliter.Text.ToString() == "ip" || cmb_fliter.Text.ToString() == "icmp" || cmb_fliter.Text.ToString() == "arp") { string filter = cmb_fliter.Text.ToString(); device.PcapSetFilter(filter); device1.PcapSetFilter(filter); } device.PcapOnPacketArrival += device_PcapOnPacketArrival; device1.PcapOnPacketArrival += new SharpPcap.PacketArrivalEvent( device_PcapOnPacketArrivalfile); device1.PcapDumpOpen("test.pcap"); device.PcapStartCapture(); device1.PcapStartCapture(); } } private void show_arp(Packet packet )//解析并显示统计ARP包 { if (dvinfo.InvokeRequired) { ControlDelegate cd = new ControlDelegate(show_arp); this.Invoke(cd, new object[] { packet }); } else { DateTime time = packet.PcapHeader.Date; int len = packet.PcapHeader.PacketLength; ARPPacket arp = (ARPPacket)packet; int hwtype = arp.ARPHwType; int protocoltype = arp.ARPProtocolType; int hwaddresslength = arp.ARPHwLength; int operation = arp.ARPOperation; string srchwaddress = arp.ARPSenderHwAddress; string dsthwaddress = arp.ARPTargetHwAddress; string srcIp = arp.ARPSenderProtoAddress; string dstIp = arp.ARPTargetProtoAddress; Info info = new Info(); info.index1 = index++; info.time1 = time; info.len1 = len; info.hwtype1 = hwtype; info.protocoltype1 = protocoltype; info.hwaddresslength1 = hwaddresslength; info.operation1 = operation; info.srchwaddress1 = srchwaddress; info.dsthwaddress1 = dsthwaddress; info.srcIp1 = srcIp; info.dstIp1 = dstIp; info.pr1 = "ARP"; info.data1 = arp.EthernetData; array.Add(info); string[] arr = {info.index1.ToString(),info.time1.ToString(),info.len1.ToString(),info.srcIp1,info.dstIp1,info.srcPort1.ToString(),info.dstPort1.ToString(),info.pr1 }; dvinfo.Rows.Add(arr); arpnum = arpnum + 1; sum = sum + 1; tbxarp.Text = arpnum.ToString(); tbxsum.Text = sum.ToString(); } } private void show_tcp(Packet packet)//解析并显示统计TCP包 { if (dvinfo.InvokeRequired) { ControlDelegate cd = new ControlDelegate(show_tcp); this.Invoke(cd, new object[] { packet }); } else { DateTime time = packet.PcapHeader.Date; int len = packet.PcapHeader.PacketLength; TCPPacket tcp = (TCPPacket)packet; int checksum = tcp.Checksum; long sequencenum = tcp.SequenceNumber; string srcIp = tcp.SourceAddress; string dstIp = tcp.DestinationAddress; int srcPort = tcp.SourcePort; int dstPort = tcp.DestinationPort; string srchwaddress = tcp.SourceHwAddress; string dsthwaddress = tcp.DestinationHwAddress; Info info = new Info(); info.index1 = index++; info.time1 = time; info.len1 = len; info.checksum1 = checksum; info.sequencenum1 = sequencenum; info.srcIp1 = srcIp; info.srcPort1 = srcPort; info.dstIp1 = dstIp; info.dstPort1 = dstPort; info.srchwaddress1 = srchwaddress; info.dsthwaddress1 = dsthwaddress; info.pr1 = "TCP"; info.data1 = tcp.TCPData; array.Add(info); string[] arr = { info.index1.ToString(), info.time1.ToString(), info.len1.ToString(), info.srcIp1, info.dstIp1, info.srcPort1.ToString(), info.dstPort1.ToString(), info.pr1 }; dvinfo.Rows.Add(arr); tcpnum = tcpnum + 1; sum = sum + 1; tbxtcp.Text = tcpnum.ToString(); tbxsum.Text = sum.ToString(); } } private void show_udp(Packet packet)//解析并显示统计UDP包 { if (dvinfo.InvokeRequired) { ControlDelegate cd = new ControlDelegate(show_udp); this.Invoke(cd, new object[] { packet }); } else { DateTime time = packet.PcapHeader.Date; int len = packet.PcapHeader.PacketLength; UDPPacket udp = (UDPPacket)packet; int checksum = udp.Checksum; string srchwaddress = udp.SourceHwAddress; string dsthwaddress = udp.DestinationHwAddress; string srcIp = udp.SourceAddress; string dstIp = udp.DestinationAddress; int srcPort = udp.SourcePort; int dstPort = udp.DestinationPort; Info info = new Info(); info.index1 = index++; info.time1 = time; info.len1 = len; info.checksum1 = checksum; info.srchwaddress1 = srchwaddress; info.dsthwaddress1 = dsthwaddress; info.srcIp1 = srcIp; info.srcPort1 = srcPort; info.dstIp1 = dstIp; info.dstPort1 = dstPort; info.pr1 = "UDP"; info.data1 = udp.UDPData; array.Add(info); string[] arr = { info.index1.ToString(), info.time1.ToString(), info.len1.ToString(), info.srcIp1, info.dstIp1, info.srcPort1.ToString(), info.dstPort1.ToString(), info.pr1 }; dvinfo.Rows.Add(arr); udpnum = udpnum + 1; sum = sum + 1; tbxudp.Text = udpnum.ToString(); tbxsum.Text = sum.ToString(); } } private void show_ip(Packet packet)//解析并显示统计IP包 { if (dvinfo.InvokeRequired) { ControlDelegate cd = new ControlDelegate(show_ip); this.Invoke(cd, new object[] { packet }); } else { DateTime time = packet.PcapHeader.Date; int len = packet.PcapHeader.PacketLength; IPPacket ip = (IPPacket)packet; int version = ip.Version; int ipheadlength = ip.IpHeaderLength; int sevicetype = ip.TypeOfService; int totallength = ip.IPTotalLength; int flag = ip.FragmentOffset; int fragflag = ip.FragmentFlags; int livetime = ip.TimeToLive; int protocol = ip.IPProtocol; int checksum = ip.IPChecksum; string srcIp = ip.SourceAddress; string dstIp = ip.DestinationAddress; string srchwaddress = ip.SourceHwAddress; string dsthwaddress = ip.DestinationHwAddress; Info info=new Info(); info.index1 = index++; info.time1 = time; info.len1 = len; info.version1 = version; info.ipheaderlength1 = ipheadlength; info.sevicetype1 = sevicetype; info.totallength1 = totallength; info.flag1 = flag; info.fragflag1 = fragflag; info.livetime1 = livetime; info.protocol1 = protocol; info.checksum1 = checksum; info.srcIp1 = srcIp; info.dstIp1 = dstIp; info.srchwaddress1 = srchwaddress; info.dsthwaddress1 = dsthwaddress; info.pr1 = "IP"; info.data1 = ip.IPData; array.Add(info); string[] arr = { info.index1.ToString(), info.time1.ToString(), info.len1.ToString(), info.srcIp1, info.dstIp1, info.srcPort1.ToString(), info.dstPort1.ToString(), info.pr1 }; dvinfo.Rows.Add(arr); ipnum = ipnum + 1; sum = sum + 1; tbxip.Text = ipnum.ToString(); tbxsum.Text = sum.ToString(); } } private void show_icmp(Packet packet)//解析并显示统计ICMP包 { if (dvinfo.InvokeRequired) { ControlDelegate cd = new ControlDelegate(show_icmp); this.Invoke(cd, new object[] { packet }); } else { DateTime time = packet.PcapHeader.Date; int len = packet.PcapHeader.PacketLength; ICMPPacket icmp = (ICMPPacket)packet; int sevice = icmp.TypeOfService; int checksum = icmp.ICMPChecksum; int code = icmp.MessageCode; string srcIp = icmp.SourceAddress; string dstIp = icmp.DestinationAddress; string srchwaddress = icmp.SourceHwAddress; string dsthwaddress = icmp.DestinationHwAddress; Info info = new Info(); info.index1 = index++; info.time1 = time; info.len1 = len; info.sevicetype1 = sevice; info.checksum1 = checksum; info.code1 = code; info.srcIp1 = srcIp; info.dstIp1 = dstIp; info.srchwaddress1 = srchwaddress; info.dsthwaddress1 = dsthwaddress; info.pr1 = "ICMP"; info.data1 = icmp.ICMPData; array.Add(info); string[] arr = { info.index1.ToString(), info.time1.ToString(), info.len1.ToString(), info.srcIp1, info.dstIp1, info.srcPort1.ToString(), info.dstPort1.ToString(), info.pr1 }; dvinfo.Rows.Add(arr); icmpnum = icmpnum + 1; sum = sum + 1; tbxicmp.Text = icmpnum.ToString(); tbxsum.Text = sum.ToString(); } } void device_PcapOnPacketArrival(object sender, Packet packet)//抓包 { if (packet is ARPPacket) { show_arp(packet); } if (packet is TCPPacket) { show_tcp(packet); } if (packet is IPPacket) { show_ip(packet); } if (packet is UDPPacket) { show_udp(packet); } if (packet is ICMPPacket) { show_icmp(packet); } } private static void device_PcapOnPacketArrivalfile(object sender, Packet packet)//抓包存入文件 { PcapDevice device = (PcapDevice)sender; //if device has a dump file opened if( device.PcapDumpOpened ) { //dump the packet to the file device.PcapDump( packet ); Console.WriteLine("Packet dumped to file."); } } private void btnstop_Click(object sender, EventArgs e)//停止按钮响应事件 { device.PcapOnPacketArrival -= device_PcapOnPacketArrival; device1.PcapOnPacketArrival -= device_PcapOnPacketArrivalfile; btnstart.Enabled = true; btnstop.Enabled = false; } private void btnsave_Click(object sender, EventArgs e)//保存按钮响应事件 { SaveFileDialog sfile = new SaveFileDialog(); if (sfile.ShowDialog() == DialogResult.OK) { string fileName = sfile.FileName; File.Copy("test.pcap", (fileName+".pcap")); } } private void btnread_Click(object sender, EventArgs e)//读取按钮响应事件 { OpenFileDialog ofile = new OpenFileDialog(); if (ofile.ShowDialog() == DialogResult.OK) { PcapDevice device2 = SharpPcap.GetPcapOfflineDevice(ofile.FileName); int readTimeoutMilliseconds = 1000; device2.PcapOpen(true, readTimeoutMilliseconds); device2.PcapOnPacketArrival += device_PcapOnPacketArrival; device2.PcapStartCapture(); } } private void sniffer_Load(object sender, EventArgs e)//窗体加载后初始化 { getnetcard(); flitershow(); } void getnetcard() //获取网卡列表并显示 { devices = SharpPcap.GetAllDevices(); // If no devices were found print an error if (devices.Count < 1) { MessageBox.Show("No devices were found on this machine"); return; } // Print out the available network devices foreach (PcapDevice dev in devices) cmb_netcard.Items.Add(dev.PcapName.ToString()); //cmb_netcard.Items.Add(dev.PcapDescription.ToString()); } void flitershow() //显示过滤规则 { cmb_fliter.Items.Add("不过滤"); cmb_fliter.Items.Add("tcp"); cmb_fliter.Items.Add("udp"); cmb_fliter.Items.Add("ip"); cmb_fliter.Items.Add("icmp"); cmb_fliter.Items.Add("arp"); } private void sniffer_FormClosed(object sender, FormClosedEventArgs e)//窗口关闭响应事件 { Application.Exit(); } private void dvinfo_SelectionChanged(object sender, EventArgs e)//选中行改变触发事件 { tvinfo.Nodes.Clear(); rtbinfo.Text = ""; rtxinfo2.Text = ""; List<char> ch=new List<char>(); List<string>str=new List<string>(); for (int a = 0; a < array[dvinfo.CurrentRow.Index].data1.Length;a++ ) { int ints = array[dvinfo.CurrentRow.Index].data1[a]; char ch1; if (ints < 128&&ints>0) ch1 = (char)ints; else ch1='.'; ch.Add(ch1); String strA = array[dvinfo.CurrentRow.Index].data1[a].ToString("x2"); str.Add(strA); } for (int a = 0; a < array[dvinfo.CurrentRow.Index].data1.Length; a++) { if (((a+1) % 10) == 0) { rtbinfo.Text += (str[a] + " " + "\n"); rtxinfo2.Text += (ch[a].ToString() + "\n"); } else { rtbinfo.Text += (str[a] + " " ); rtxinfo2.Text += (ch[a].ToString()); } } TreeNode trnode = tvinfo.Nodes.Add("捕获到的第"+(dvinfo.CurrentRow.Index+1).ToString()+"个包"); TreeNode ctrnode = trnode.Nodes.Add("协议: "+dvinfo.CurrentRow.Cells[7].Value.ToString()); string sflag = dvinfo.CurrentRow.Cells[7].Value.ToString(); switch (sflag) { case "ARP" : ctrnode.Nodes.Add("硬件类型:" +array[dvinfo.CurrentRow.Index].hwtype1.ToString()); ctrnode.Nodes.Add("协议类型:" +array[dvinfo.CurrentRow.Index].protocoltype1.ToString()); ctrnode.Nodes.Add("硬件地址长度:" + array[dvinfo.CurrentRow.Index].hwaddresslength1.ToString()); ctrnode.Nodes.Add("操作码:" + array[dvinfo.CurrentRow.Index].operation1.ToString()); ctrnode.Nodes.Add("源MAC地址:" + array[dvinfo.CurrentRow.Index].srchwaddress1.ToString()); ctrnode.Nodes.Add("目的MAC地址:" + array[dvinfo.CurrentRow.Index].dsthwaddress1.ToString()); ctrnode.Nodes.Add("源IP地址:" + array[dvinfo.CurrentRow.Index].srcIp1.ToString()); ctrnode.Nodes.Add("目的IP地址:" + array[dvinfo.CurrentRow.Index].dstIp1.ToString()); break; case "IP" : ctrnode.Nodes.Add("版本:" + array[dvinfo.CurrentRow.Index].version1.ToString()); ctrnode.Nodes.Add("IP头长:" + array[dvinfo.CurrentRow.Index].ipheaderlength1.ToString()); ctrnode.Nodes.Add("服务类型:" + array[dvinfo.CurrentRow.Index].sevicetype1.ToString()); ctrnode.Nodes.Add("总长度:" + array[dvinfo.CurrentRow.Index].totallength1.ToString()); ctrnode.Nodes.Add("标识:" + array[dvinfo.CurrentRow.Index].flag1.ToString()); ctrnode.Nodes.Add("段偏移:" + array[dvinfo.CurrentRow.Index].fragflag1.ToString()); ctrnode.Nodes.Add("生存期:" + array[dvinfo.CurrentRow.Index].livetime1.ToString()); ctrnode.Nodes.Add("协议:" + array[dvinfo.CurrentRow.Index].protocol1.ToString()); ctrnode.Nodes.Add("头部校验和:" + array[dvinfo.CurrentRow.Index].checksum1.ToString()); ctrnode.Nodes.Add("源MAC地址:" + array[dvinfo.CurrentRow.Index].srchwaddress1.ToString()); ctrnode.Nodes.Add("目的MAC地址:" + array[dvinfo.CurrentRow.Index].dsthwaddress1.ToString()); ctrnode.Nodes.Add("源IP地址:" + array[dvinfo.CurrentRow.Index].srcIp1.ToString()); ctrnode.Nodes.Add("目的IP地址:" + array[dvinfo.CurrentRow.Index].dstIp1.ToString()); break; case "ICMP": ctrnode.Nodes.Add("类型:" + array[dvinfo.CurrentRow.Index].sevicetype1.ToString()); ctrnode.Nodes.Add("代码:" + array[dvinfo.CurrentRow.Index].code1.ToString()); ctrnode.Nodes.Add("校验和:" + array[dvinfo.CurrentRow.Index].checksum1.ToString()); ctrnode.Nodes.Add("源MAC地址:" + array[dvinfo.CurrentRow.Index].srchwaddress1.ToString()); ctrnode.Nodes.Add("目的MAC地址:" + array[dvinfo.CurrentRow.Index].dsthwaddress1.ToString()); ctrnode.Nodes.Add("源IP地址:" + array[dvinfo.CurrentRow.Index].srcIp1.ToString()); ctrnode.Nodes.Add("目的IP地址:" + array[dvinfo.CurrentRow.Index].dstIp1.ToString()); break; case "TCP": ctrnode.Nodes.Add("校验和:" + array[dvinfo.CurrentRow.Index].checksum1.ToString()); ctrnode.Nodes.Add("序列号:" + array[dvinfo.CurrentRow.Index].sequencenum1.ToString()); ctrnode.Nodes.Add("源端口:" + array[dvinfo.CurrentRow.Index].srcPort1.ToString()); ctrnode.Nodes.Add("目的端口:" + array[dvinfo.CurrentRow.Index].dstPort1.ToString()); ctrnode.Nodes.Add("源MAC地址:" + array[dvinfo.CurrentRow.Index].srchwaddress1.ToString()); ctrnode.Nodes.Add("目的MAC地址:" + array[dvinfo.CurrentRow.Index].dsthwaddress1.ToString()); ctrnode.Nodes.Add("源IP地址:" + array[dvinfo.CurrentRow.Index].srcIp1.ToString()); ctrnode.Nodes.Add("目的IP地址:" + array[dvinfo.CurrentRow.Index].dstIp1.ToString()); break; case "UDP": ctrnode.Nodes.Add("校验和:" + array[dvinfo.CurrentRow.Index].checksum1.ToString()); ctrnode.Nodes.Add("源端口:" + array[dvinfo.CurrentRow.Index].srcPort1.ToString()); ctrnode.Nodes.Add("目的端口:" + array[dvinfo.CurrentRow.Index].dstPort1.ToString()); ctrnode.Nodes.Add("源MAC地址:" + array[dvinfo.CurrentRow.Index].srchwaddress1.ToString()); ctrnode.Nodes.Add("目的MAC地址:" + array[dvinfo.CurrentRow.Index].dsthwaddress1.ToString()); ctrnode.Nodes.Add("源IP地址:" + array[dvinfo.CurrentRow.Index].srcIp1.ToString()); ctrnode.Nodes.Add("目的IP地址:" + array[dvinfo.CurrentRow.Index].dstIp1.ToString()); break; default : break; } } } }完整项目代码下载:
点击打开链接
