PyQt5初级教程--PyQt5中的部件II[9/13]

想用PyQt5写GUI,但是网上的PyQt5资源太少了,找到一个英文的,翻译一下,和学习PyQt5的同学共勉!
(本系列中所有代码在windows7 64位[]/Python 3.4.3 32bit/PyQt GPL v5.5 for Python v3.4 (x32)/eric6-6.0.8下测试通过.)

原本地址:http://zetcode.com/gui/pyqt5/

================================================================================

在此我们会继续介绍PyQt5的部件.我们会介绍QPixmap、QLineEdit、QSplitter和QComboBox.

QPixmap

一个QPixmap是一个用于处理图像的部件.它更适合在屏幕上显示图片.在下面的例子中,我们会用QPixmap来在窗口上显示一个图片.

#!/usr/bin/python3
# -*- coding: utf-8 -*-

"""
ZetCode PyQt5 tutorial

In this example, we dispay an image
on the window.

author: Jan Bodnar
website: zetcode.com
last edited: January 2015
"""

import sys
from PyQt5.QtWidgets import (QWidget, QHBoxLayout,
QLabel, QApplication)
from PyQt5.QtGui import QPixmap

class Example(QWidget):

def __init__(self):
super().__init__()

self.initUI()

def initUI(self):

hbox = QHBoxLayout(self)
pixmap = QPixmap("redrock.png")

lbl = QLabel(self) lbl.setPixmap(pixmap)

hbox.addWidget(lbl)
self.setLayout(hbox)

self.move(300, 200)
self.setWindowTitle('Red Rock')
self.show()

if __name__ == '__main__':

app = QApplication(sys.argv)
ex = Example()
sys.exit(app.exec_())

在上面的例子中,我们在窗口上显示了一张图片.

pixmap = QPixmap("redrock.png")

我们创建一个QPixmap对象,他用文件名作为参数.

lbl = QLabel(self)
lbl.setPixmap(pixmap)

我们把Pixmap放到QLabel部件里.

QLineEdit

一个QLineEdit是一个允许输入和编辑一行纯文件的部件.部件支持撤销和重做、剪切和剪贴、拖拽功能.

#!/usr/bin/python3
# -*- coding: utf-8 -*-

"""
ZetCode PyQt5 tutorial

This example shows text which
is entered in a QLineEdit
in a QLabel widget.

author: Jan Bodnar
website: zetcode.com
last edited: January 2015
"""

import sys
from PyQt5.QtWidgets import (QWidget, QLabel,
QLineEdit, QApplication)

class Example(QWidget):

def __init__(self):
super().__init__()

self.initUI()

def initUI(self):

self.lbl = QLabel(self)
qle = QLineEdit(self)

qle.move(60, 100)
self.lbl.move(60, 40)

qle.textChanged[str].connect(self.onChanged)

self.setGeometry(300, 300, 280, 170)
self.setWindowTitle('QLineEdit')
self.show()

def onChanged(self, text):

self.lbl.setText(text)
self.lbl.adjustSize()

if __name__ == '__main__':

app = QApplication(sys.argv)
ex = Example()
sys.exit(app.exec_())

这个例子我们显示了一个行编辑器和一个标签.我们在行编辑器里输入的文本会立刻在标签中显示.

qle = QLineEdit(self)

创建一个QLineEdit部件.

qle.textChanged[str].connect(self.onChanged)

如果在行编辑器里的文本有变动,我们就调用onChanged()方法.

def onChanged(self, text):

self.lbl.setText(text)
self.lbl.adjustSize()

在onChanged()方法里,我们设置被输入的文本到标签部件.我们通过调用adjustSize()方法来调整标签的大小到文本的长度.



图片:行编辑器

QSplitter

一个QSplitter可以让用户通过拖拽子部件的边界来控制子部件的大小.在下面的例子中,我们显示三个QFrame部件用两个分割器调整.

#!/usr/bin/python3
# -*- coding: utf-8 -*-

"""
ZetCode PyQt5 tutorial

This example shows
how to use QSplitter widget.

author: Jan Bodnar
website: zetcode.com
last edited: January 2015
"""

import sys
from PyQt5.QtWidgets import (QWidget, QHBoxLayout, QFrame,
QSplitter, QStyleFactory, QApplication)
from PyQt5.QtCore import Qt

class Example(QWidget):

def __init__(self):
super().__init__()

self.initUI()

def initUI(self):

hbox = QHBoxLayout(self)

topleft = QFrame(self) topleft.setFrameShape(QFrame.StyledPanel)

topright = QFrame(self)
topright.setFrameShape(QFrame.StyledPanel)

bottom = QFrame(self)
bottom.setFrameShape(QFrame.StyledPanel)

splitter1 = QSplitter(Qt.Horizontal) splitter1.addWidget(topleft) splitter1.addWidget(topright)

splitter2 = QSplitter(Qt.Vertical) splitter2.addWidget(splitter1)
splitter2.addWidget(bottom)

hbox.addWidget(splitter2)
self.setLayout(hbox)

self.setGeometry(300, 300, 300, 200)
self.setWindowTitle('QSplitter')
self.show()

def onChanged(self, text):

self.lbl.setText(text)
self.lbl.adjustSize()

if __name__ == '__main__':

app = QApplication(sys.argv)
ex = Example()
sys.exit(app.exec_())

在这个例子中,有三个框架和两个分割器.请注意,在某些主题下,分割器可能并不会很友好的显示.

topleft = QFrame(self)
topleft.setFrameShape(QFrame.StyledPanel)

我们用一个经典的框架以便可以看清QFrame部件的边界.

splitter1 = QSplitter(Qt.Horizontal)
splitter1.addWidget(topleft)
splitter1.addWidget(topright)

我们创建一个QSplitter部件,把两个框架加到它里面.

splitter2 = QSplitter(Qt.Vertical)
splitter2.addWidget(splitter1)

我们还可以把一个分割器加到另一个分割器部件里.



图片:分割器

QComboBox

QComboBox是一个允许用户从一个选项列表里选择的部件.

#!/usr/bin/python3
# -*- coding: utf-8 -*-

"""
ZetCode PyQt5 tutorial

This example shows how to use
a QComboBox widget.

author: Jan Bodnar
website: zetcode.com
last edited: January 2015
"""

import sys
from PyQt5.QtWidgets import (QWidget, QLabel,
QComboBox, QApplication)

class Example(QWidget):

def __init__(self):
super().__init__()

self.initUI()

def initUI(self):

self.lbl = QLabel("Ubuntu", self)

combo = QComboBox(self) combo.addItem("Ubuntu") combo.addItem("Mandriva") combo.addItem("Fedora") combo.addItem("Arch") combo.addItem("Gentoo")

combo.move(50, 50)
self.lbl.move(50, 150)

combo.activated[str].connect(self.onActivated)

self.setGeometry(300, 300, 300, 200)
self.setWindowTitle('QComboBox')
self.show()

def onActivated(self, text):

self.lbl.setText(text)
self.lbl.adjustSize()

if __name__ == '__main__':

app = QApplication(sys.argv)
ex = Example()
sys.exit(app.exec_())
例子显示了一个QComboBox和一个标签.下拉列表框是一个有着5个选项的列表.它们是Linux发行版的名字.标签部件显示了从下拉列表框选择的选项.

combo = QComboBox(self)
combo.addItem("Ubuntu")
combo.addItem("Mandriva")
combo.addItem("Fedora")
combo.addItem("Arch")
combo.addItem("Gentoo")

我们创建一个有着5个选项的QComboBox部件.

combo.activated[str].connect(self.onActivated)

基于选择,我们调用onActivated()方法.

def onActivated(self, text):

self.lbl.setText(text)
self.lbl.adjustSize()

在方法里,我们设置被选择的文本到标签部件.我们会调整标签的大小.

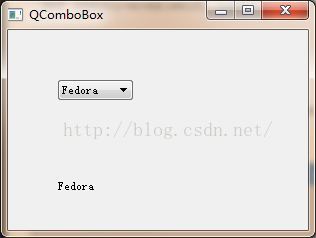

图片:下拉列表框
