Android基础之UI设计与开发---------自定义进度条
2013-08-14 11:25
609 查看
一、在开发中我们经常要用到进度条显示下载或者加载的进度。系统自带的黄色进度条在UI效果上经常不能满足策划或者美工的要求。这就要我们屌丝程序员自己自定义进度条。
话不多说,先上图。
实现步骤一:先定义进度条的风格样式
实现步骤二:定义样式style中用到的@drawable/progressbar_mini资源文件。可以再xml中绘制进度条的不同样式(圆角,直角……)和颜色。
实现步骤三:写java文件,定义进度条上显示的文字。
最后一步:xml文件中引用自定义的进度条:
OK,一个简单的更改背景和样式其带文字显示的进度条就完成。

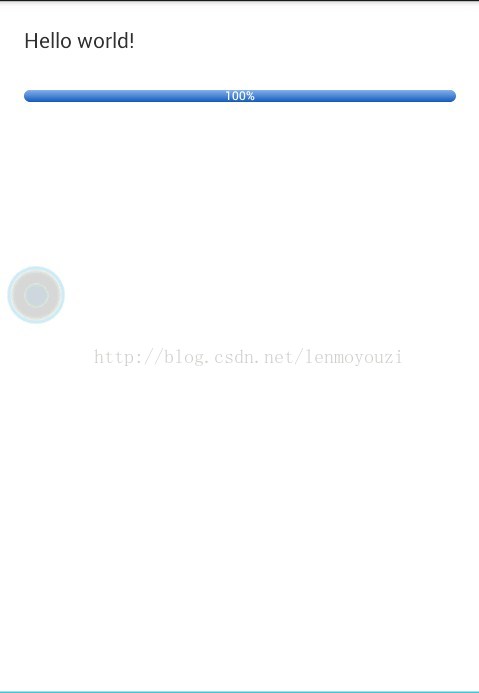

话不多说,先上图。
实现步骤一:先定义进度条的风格样式
<!-- 自定义进度条 --> <style name="ProgressBar_Mini" parent="@android:style/Widget.ProgressBar.Horizontal"> <item name="android:maxHeight">50dip</item> <item name="android:minHeight">8dip</item> <item name="android:indeterminateOnly">false</item> <item name="android:indeterminateDrawable">@android:drawable/progress_indeterminate_horizontal</item> <item name="android:progressDrawable">@drawable/progressbar_mini</item> </style>
实现步骤二:定义样式style中用到的@drawable/progressbar_mini资源文件。可以再xml中绘制进度条的不同样式(圆角,直角……)和颜色。
<?xml version="1.0" encoding="utf-8"?> <layer-list xmlns:android="http://schemas.android.com/apk/res/android" > <item android:id="@android:id/background"> <shape > <corners android:radius="5dip" /> <gradient android:angle="270" android:centerY="0.75" android:endColor="#F5F5F5" android:startColor="#BEBEBE" /> </shape> </item> <item android:id="@android:id/secondaryProgress"> <clip > <shape > <corners android:radius="0dip" /> <gradient android:angle="270" android:centerY="0.75" android:endColor="#165CBC" android:startColor="#85B0E9" /> </shape> </clip> </item> <item android:id="@android:id/progress"> <clip > <shape > <corners android:radius="5dip" /> <gradient android:angle="270" android:centerY="0.75" android:endColor="#165CBC" android:startColor="#85B0E9" /> </shape> </clip> </item> </layer-list>
实现步骤三:写java文件,定义进度条上显示的文字。
public class MyProgressBar extends ProgressBar { private String text_progress; private Paint mPaint;//画笔 public MyProgressBar(Context context) { super(context); initPaint(); } public MyProgressBar(Context context, AttributeSet attrs) { super(context, attrs); initPaint(); } public MyProgressBar(Context context, AttributeSet attrs, int defStyle) { super(context, attrs, defStyle); initPaint(); } @Override public synchronized void setProgress(int progress) { super.setProgress(progress); setTextProgress(progress); } @Override protected synchronized void onDraw(Canvas canvas) { // TODO Auto-generated method stub super.onDraw(canvas); Rect rect=new Rect(); this.mPaint.getTextBounds(this.text_progress, 0, this.text_progress.length(), rect); int x = (getWidth() / 2) - rect.centerX(); int y = (getHeight() / 2) - rect.centerY(); canvas.drawText(this.text_progress, x, y, this.mPaint); } /** * *description: 初始化画笔 *Create by lll on 2013-8-13 下午1:41:49 */ private void initPaint(){ this.mPaint=new Paint(); this.mPaint.setAntiAlias(true); this.mPaint.setColor(Color.WHITE); } private void setTextProgress(int progress){ int i = (int) ((progress * 1.0f / this.getMax()) * 100); this.text_progress = String.valueOf(i) + "%"; } }
最后一步:xml文件中引用自定义的进度条:
<com.example.widgetshop.MyProgressBar android:id="@+id/progressBar1" style="@style/ProgressBar_Mini" android:layout_width="match_parent" android:layout_height="wrap_content" android:progress="100" android:layout_marginTop="24dp" />
OK,一个简单的更改背景和样式其带文字显示的进度条就完成。
